F Model Mack

Post by Deaf as on Wed 16 Sep 2015, 5:58 pm

I've had these bits lying around in the cupboard for ages - it seems most my builds start there! Got the cab from Auslowe years ago and the body is from the Peterbilt that I've  turned into the logger.



I removed the front wheel arch to make it a single drive. going to use Auslowe's single spring suspension. It says 1:25/1:24 but I think it should be fine under the tow body.



I have a chassis from the Madam Butterfly kit that I think I'll use. I don't think it's anywhere near accurate for a Mack but not much will be seen so it'll do. Be great if someone did a tutorial on converting a chassis to make it closer to genuine Mack. Still haven't decided on colours or anything else but will be RHD with spider rims.
avatar
Deaf as
Legend Poster
Legend Poster

Male Number of posts : 1145
Age : 48
Location : Clergate
Registration date : 2013-11-20

Back to top Go down

Re: F Model Mack

Post by allan on Wed 16 Sep 2015, 6:18 pm

Will be watching this one.
avatar
allan
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 9552
Age : 60
Location : East Maitland
Registration date : 2008-03-31

Back to top Go down

Re: F Model Mack

Post by scummy on Wed 16 Sep 2015, 9:19 pm

scratch Hmmmmmmm very interesting .
avatar
scummy
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 1528
Age : 58
Location : Campbelltown
Registration date : 2010-01-15

http://markharmer@bigpond.com

Back to top Go down

Re: F Model Mack

Post by Deaf as on Wed 21 Oct 2015, 3:52 pm

Picked up a few more parts for this at Wagga on the weekend. Good to go when I've finished the R model. Trying to decide at which end of it's life to model it in. Were these a fibreglass cab? If I go old I don't want to put rust where it wouldn't be. thinking it might make a good load for a tilt tray or step deck if I build it as having passed its use by date.
avatar
Deaf as
Legend Poster
Legend Poster

Male Number of posts : 1145
Age : 48
Location : Clergate
Registration date : 2013-11-20

Back to top Go down

Re: F Model Mack

Post by allan on Thu 22 Oct 2015, 11:06 am

If it was mine I would put a pan on the back of it like the one on Ford short hauler, Would look good with a tipper back on it or the wrecker back
avatar
allan
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 9552
Age : 60
Location : East Maitland
Registration date : 2008-03-31

Back to top Go down

Re: F Model Mack

Post by Deaf as on Sat 25 Jun 2016, 4:07 pm

Dragging this back onto the work bench. Colours etc still up in the air but I'll start getting it together and see what it says to me on the way.
avatar
Deaf as
Legend Poster
Legend Poster

Male Number of posts : 1145
Age : 48
Location : Clergate
Registration date : 2013-11-20

Back to top Go down

Re: F Model Mack

Post by allan on Sat 25 Jun 2016, 4:15 pm

popcorn
avatar
allan
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 9552
Age : 60
Location : East Maitland
Registration date : 2008-03-31

Back to top Go down

Re: F Model Mack

Post by Antwon on Sat 25 Jun 2016, 5:36 pm

popcorn
avatar
Antwon
I Love this place
I Love this place

Male Number of posts : 888
Age : 51
Location : Adelaide SA
Registration date : 2013-02-10

Back to top Go down

Re: F Model Mack

Post by jmackb on Sun 26 Jun 2016, 10:51 am

Hi Antwon, this is my 1st reply/comment. You asked if your cab was a fibreglass or a steel cab, your cab is a steel cab.
In regards to the chassis, how accurate do you want it to be? There are a few variations in regards to the chassis details.

jmackb
AMCC NEWBIE!
AMCC NEWBIE!

Male Number of posts : 3
Age : 58
Location : sydney nsw
Registration date : 2016-05-18

Back to top Go down

Re: F Model Mack

Post by Jerry Ol'55 on Thu 30 Jun 2016, 11:40 pm

avatar
Jerry Ol'55
I Love this place
I Love this place

Male Number of posts : 639
Age : 62
Location : Gosnells W.A.
Registration date : 2014-06-03

Back to top Go down

Re: F Model Mack

Post by Deaf as on Wed 06 Jul 2016, 7:18 pm



Glued the tow body together so I can start to measure this up and see what will go where.



This is the chassis from the madam butterfly kit. I made the full chassis and then cut the rear suspension off, I'll use it on the F12 Volvo. It won't be right for that truck but It'll be good enough. I'll probably have to add a bit back onto the rear end of the chassis but I'll know for sure when I have the gantry for the air intakes on.  Next up is cleaning up the resin ready to glue on.
avatar
Deaf as
Legend Poster
Legend Poster

Male Number of posts : 1145
Age : 48
Location : Clergate
Registration date : 2013-11-20

Back to top Go down

Re: F Model Mack

Post by jmackb on Sat 09 Jul 2016, 3:45 pm

Hi Deaf as, I have obviously replied to the wrong member, my comments were meant for you.

jmackb
AMCC NEWBIE!
AMCC NEWBIE!

Male Number of posts : 3
Age : 58
Location : sydney nsw
Registration date : 2016-05-18

Back to top Go down

Re: F Model Mack

Post by Deaf as on Sun 10 Jul 2016, 4:22 pm

No worries jmackb, I appreciate the answer. Started cleaning up the resin, there is  a fair bit to do!



Some won't get used but while I'm cleaning, may as well do all of it. Only going to use 1 fuel tank and will probably cut it down to fit.
avatar
Deaf as
Legend Poster
Legend Poster

Male Number of posts : 1145
Age : 48
Location : Clergate
Registration date : 2013-11-20

Back to top Go down

Re: F Model Mack

Post by allan on Sun 10 Jul 2016, 5:20 pm

popcorn Smile
avatar
allan
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 9552
Age : 60
Location : East Maitland
Registration date : 2008-03-31

Back to top Go down

Re: F Model Mack

Post by Deaf as on Sun 17 Jul 2016, 7:39 pm

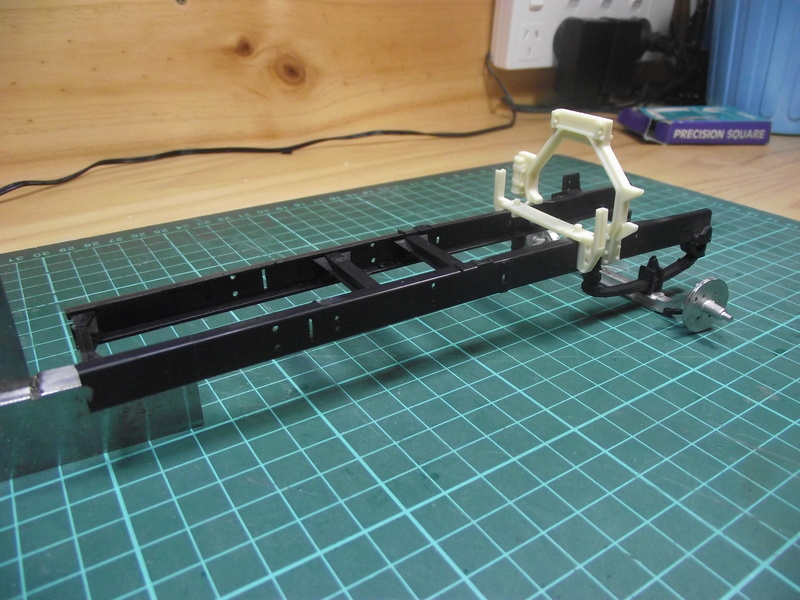

Got all the resin cleaned up and washed off and started to get the main pieces on, so far the rear cab mount and brackets for the air cleaner gantry. Using a white metal front axle as a trial run for future builds with lots of resin.
