Just the build of the B61

Post by clea on Sat 19 Mar 2016, 12:13 pm


Workbench before clean up, problem is storage?

Start of the B model, had a very old, very fragile Jaymar cab, but it mostly got built out of car bog and HIPS sheet.

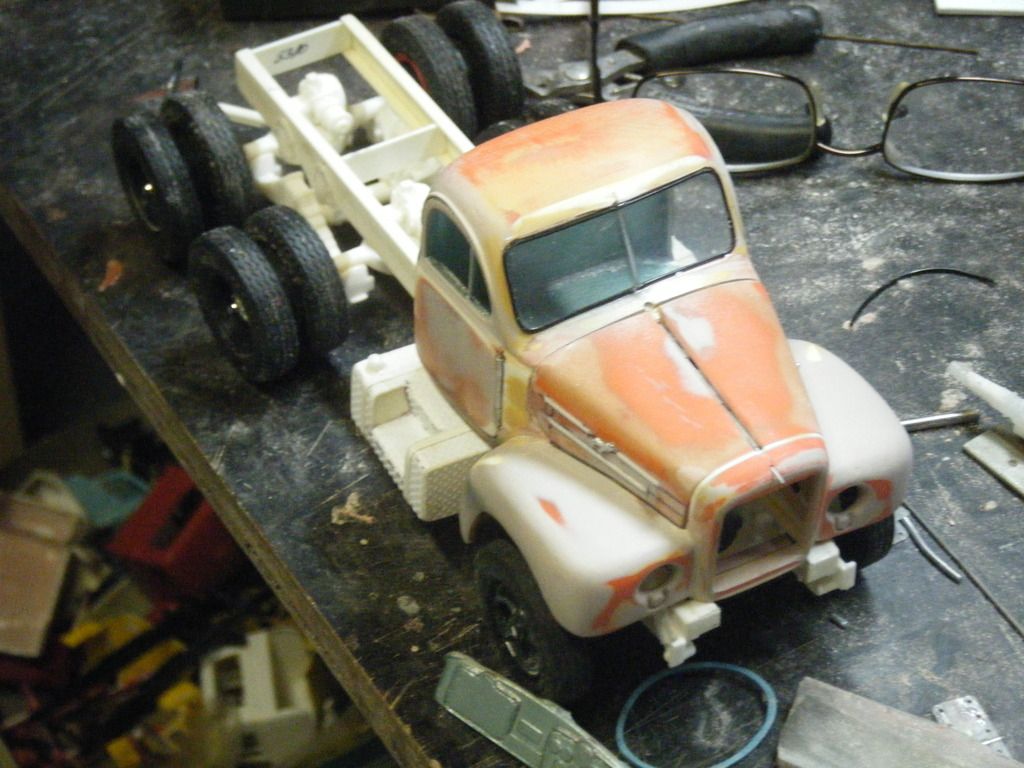

A lot of bog, lot of sanding

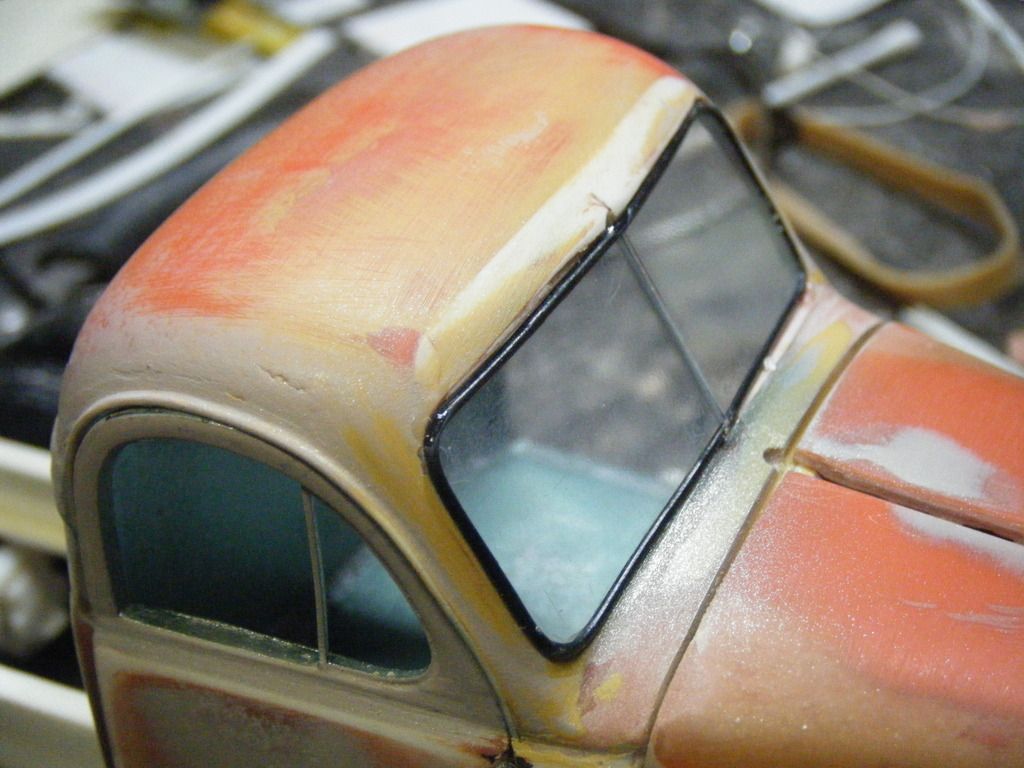

Sortof found a system for the rubber around screens, measured and cut .13mm clear for screen, stripped and slit the plastic sheath from fine wire, fed it around the winscreen, Fiddly but works well, no glue smears on glass

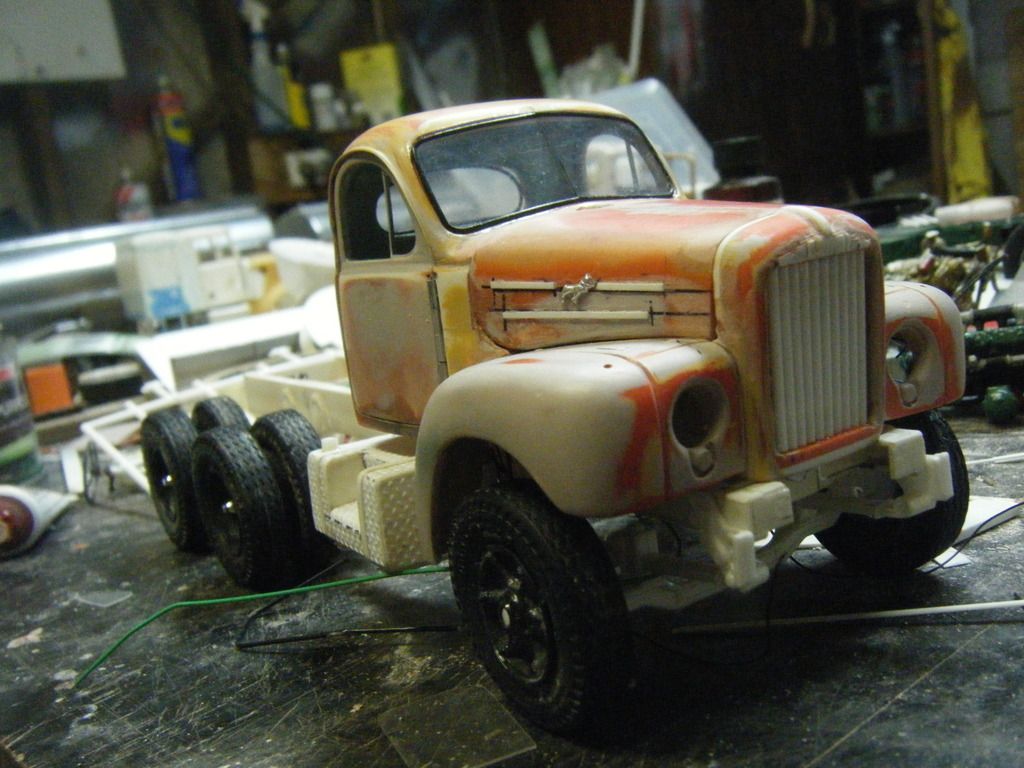

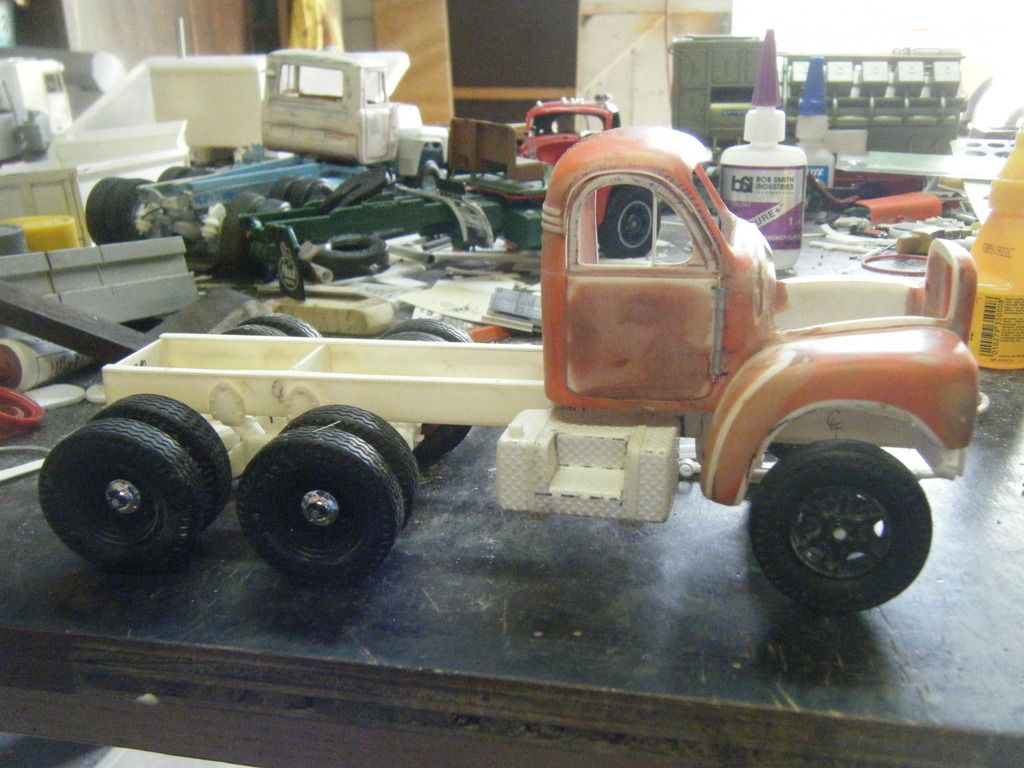

up on it's feet, DM600 drive

scratched the motor, exhaust from spares.
avatar
clea
I should be working on Models
I should be working on Models

Male Number of posts : 167
Age : 68
Location : portland victoria
Registration date : 2013-04-27

Back to top Go down

Re: Just the build of the B61

Post by dv8v8 on Sat 19 Mar 2016, 12:17 pm

bigthumbsup
avatar
dv8v8
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 5008
Location : Rockhampton QLD
Registration date : 2008-04-26

Back to top Go down

Re: Just the build of the B61

Post by Antwon on Wed 01 Jun 2016, 10:28 pm

Don't remember looking at this post, love the idea for the windscreen rubber. I do like these old workhorses.
Has the build progressed any Clea?
avatar
Antwon
I Love this place
I Love this place

Male Number of posts : 890
Age : 52
Location : Adelaide SA
Registration date : 2013-02-10

Back to top Go down

Re: Just the build of the B61

Post by clea on Thu 02 Jun 2016, 12:05 am

Here's some more of the build
" />
Car bog.
" />
" />
" />
" />
" />
" />
" />
" />
" />
" />
" />
Didn't want it shiny, just a old work horse.
the other pics I'll post later
avatar
clea
I should be working on Models
I should be working on Models

Male Number of posts : 167
Age : 68
Location : portland victoria
Registration date : 2013-04-27

Back to top Go down

Re: Just the build of the B61

Post by hqmon on Thu 02 Jun 2016, 10:06 am

Really like this one, great work.

hqmon
I should be working on Models
I should be working on Models

Male Number of posts : 324
Age : 65
Location : Tasmania
Registration date : 2009-11-08

Back to top Go down

The build of the B61...How it came to be here.

Post by clea on Thu 02 Jun 2016, 11:32 am

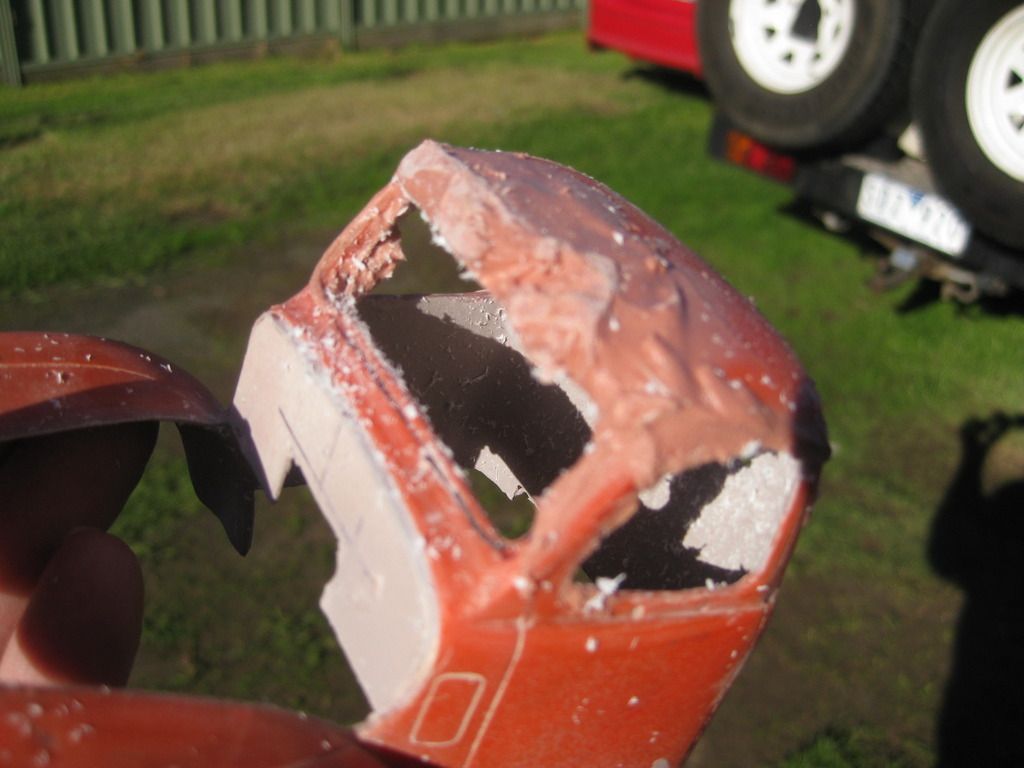

Just to finish this thread. The Jaymar cab was bought when they first released them and just sat, pulled it out for something to do in Portland. So I reckon it would be 30+ years. Terrible, fibreglass item, micro thin in some parts, and so brittle. First step, remove the bonnet, not sure why.
" />

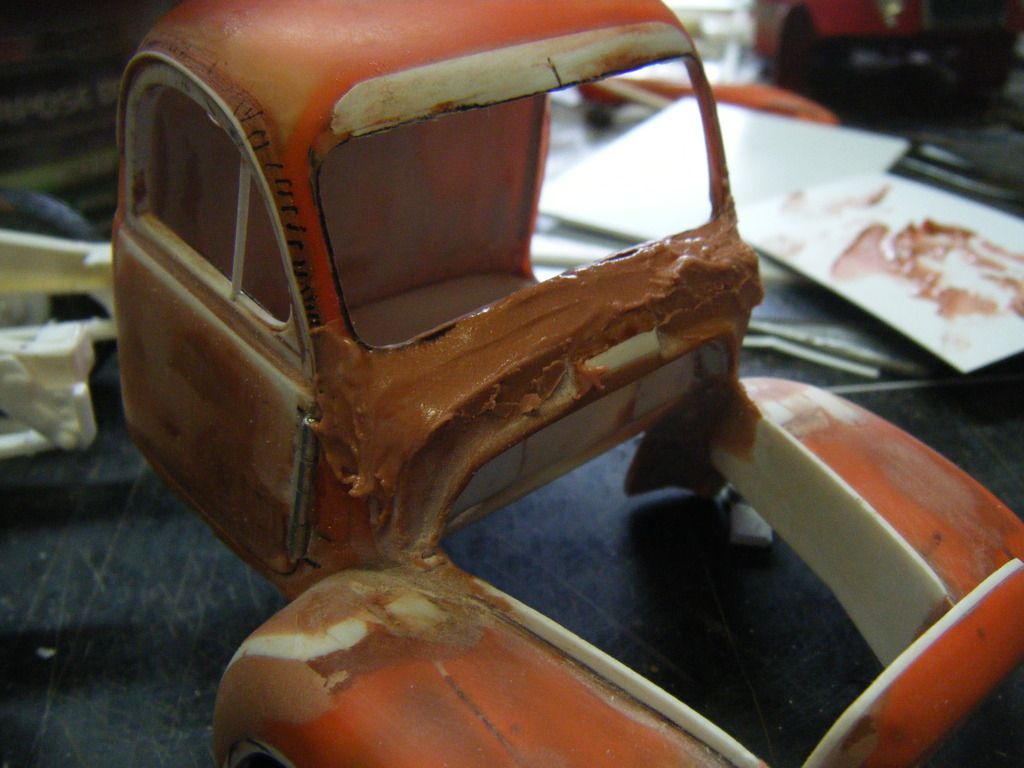

The thing I found with the variance in the thickness, is in order to work on it I built it up with car bog, didn't help a lot, the bonnet basically shattered.
" />

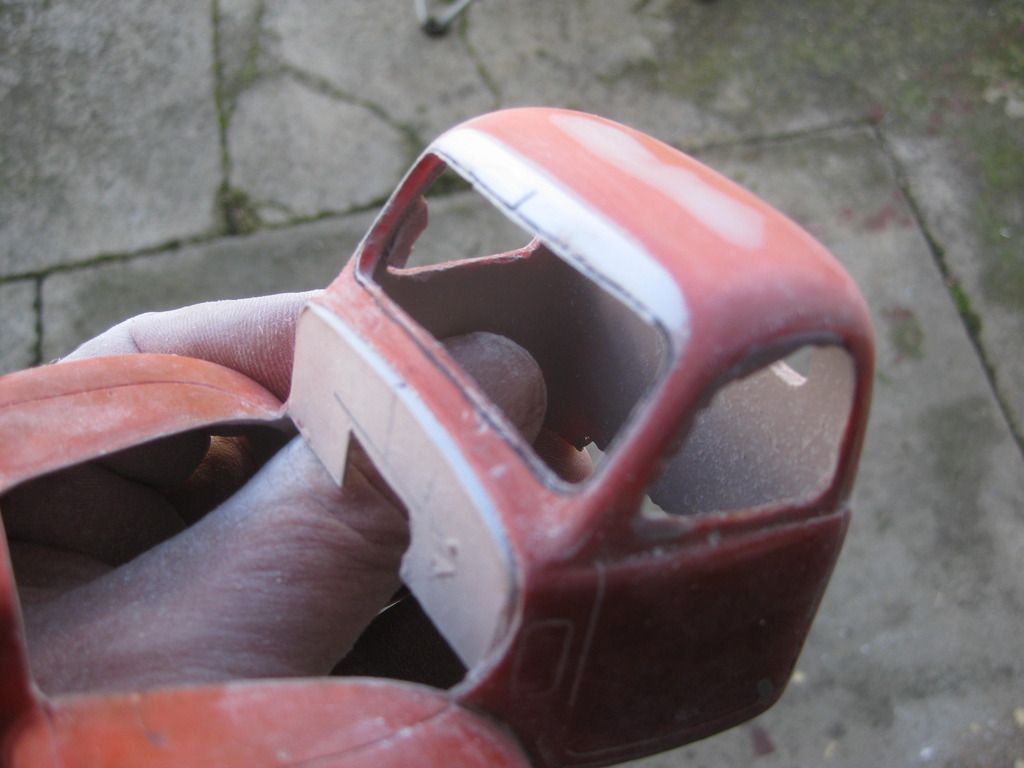

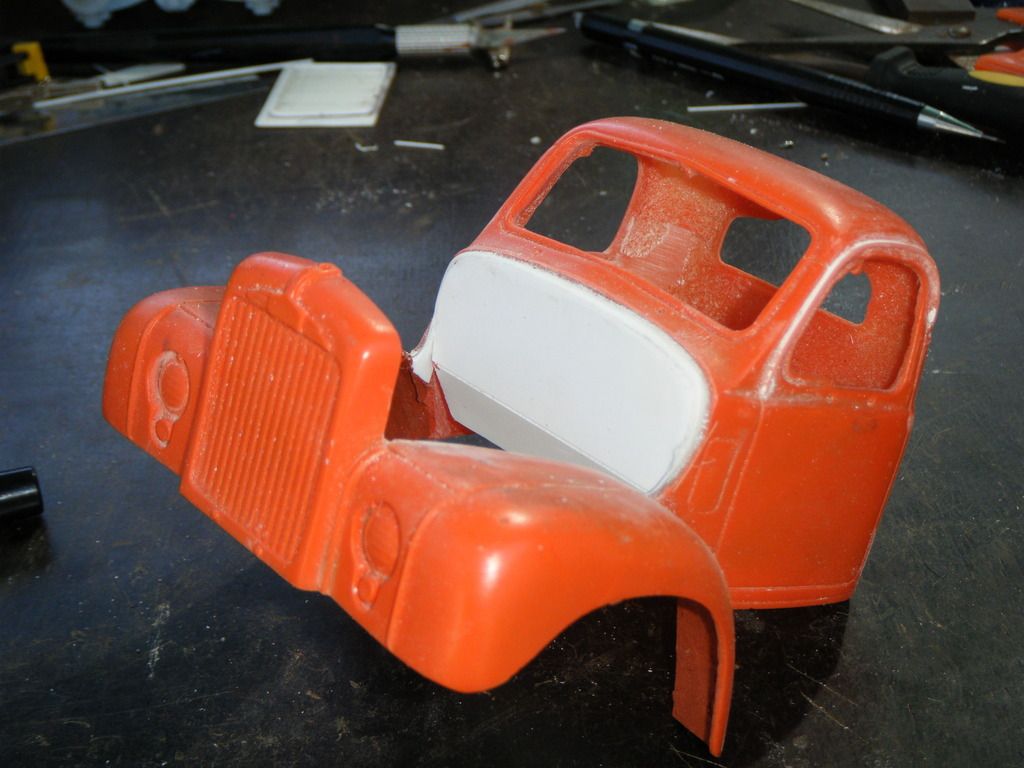

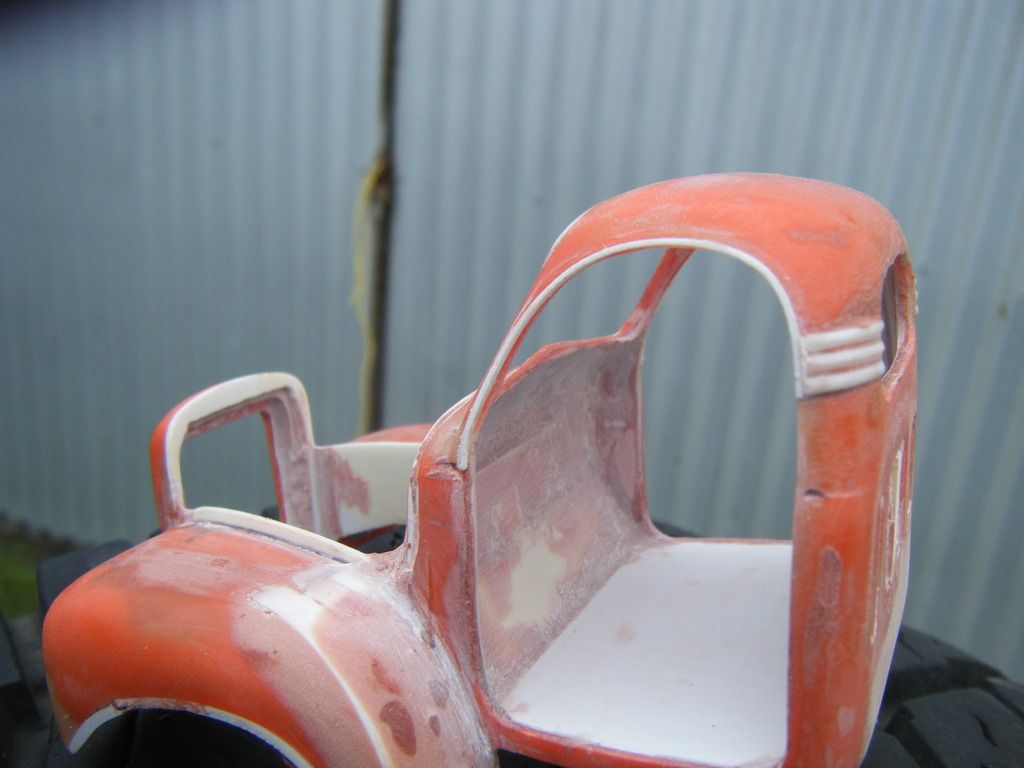

The original roof profile was wrong, the windscreen profile was wrong, the front mudguard profile was wrong, Basically everything was changed, white is hips, and bog for the rest
" />
" />
" />

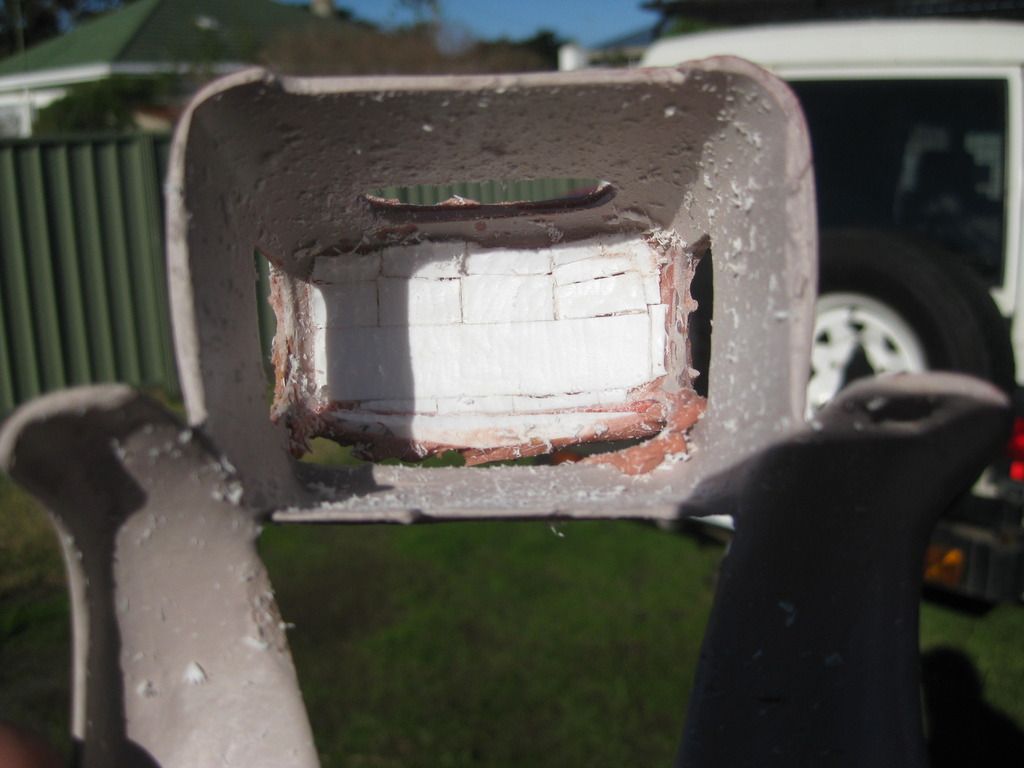

Reinforcing the cab for working on.
" />

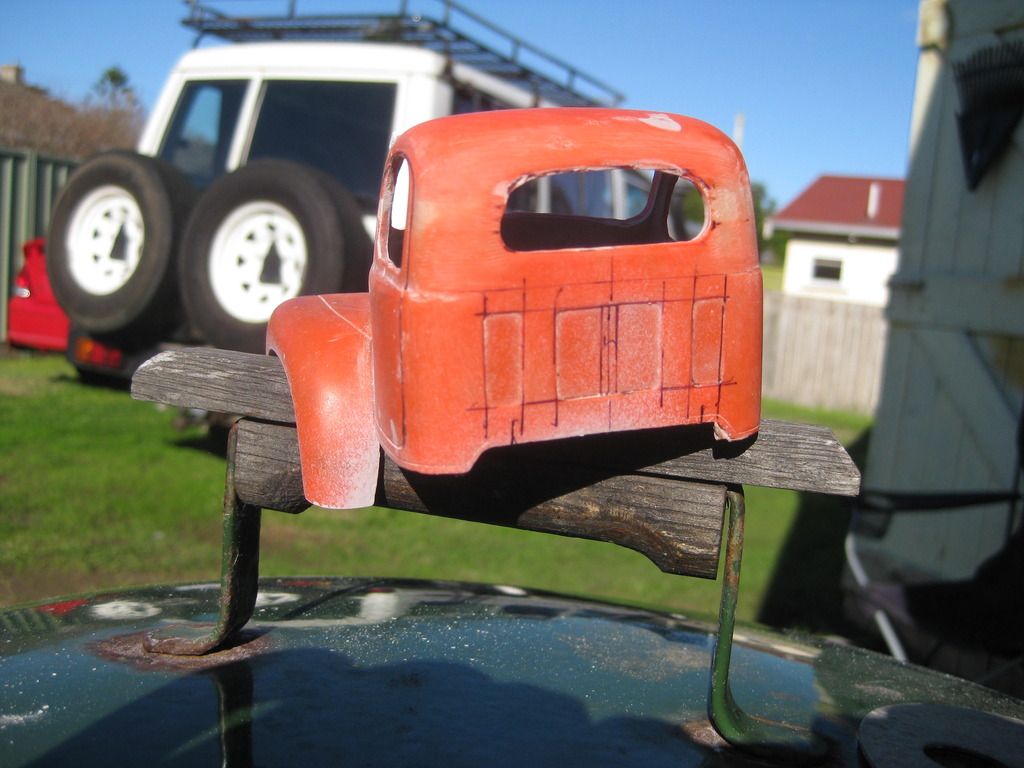

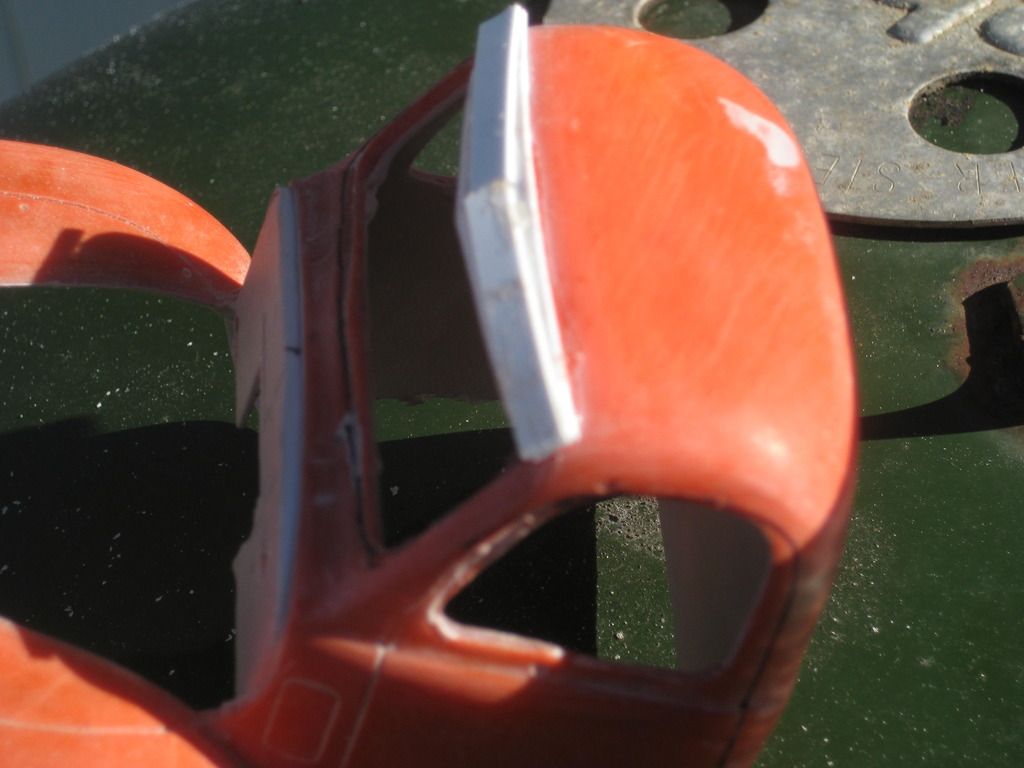

was happy with the roof. Had to alter the rear
" />
" />

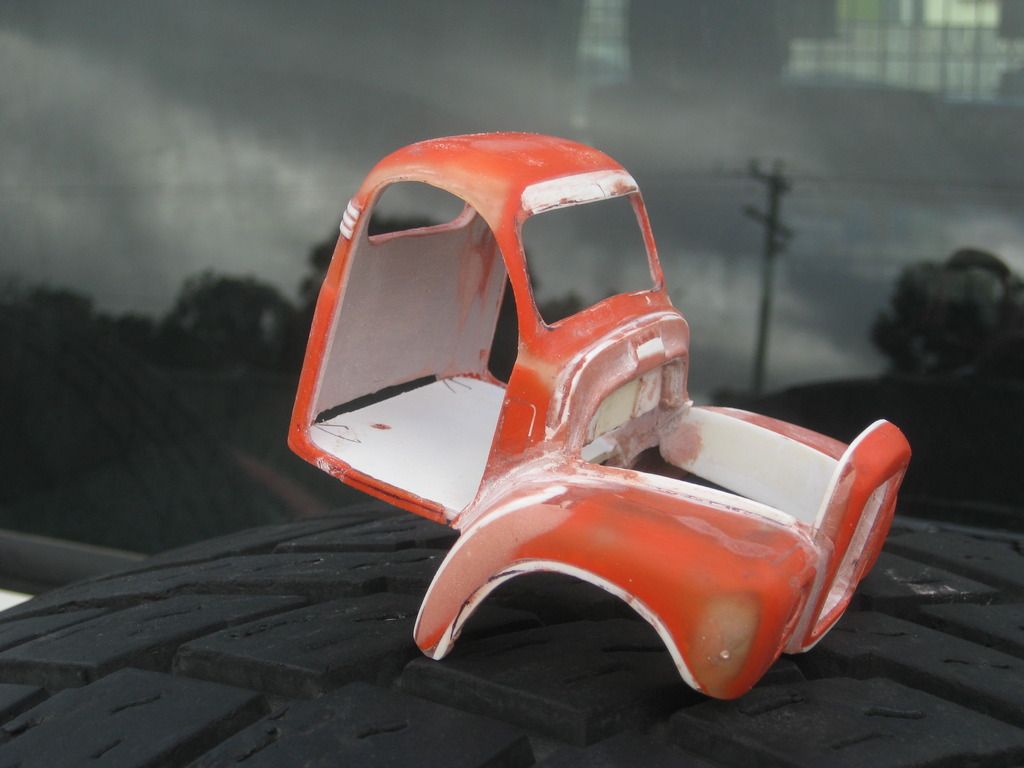

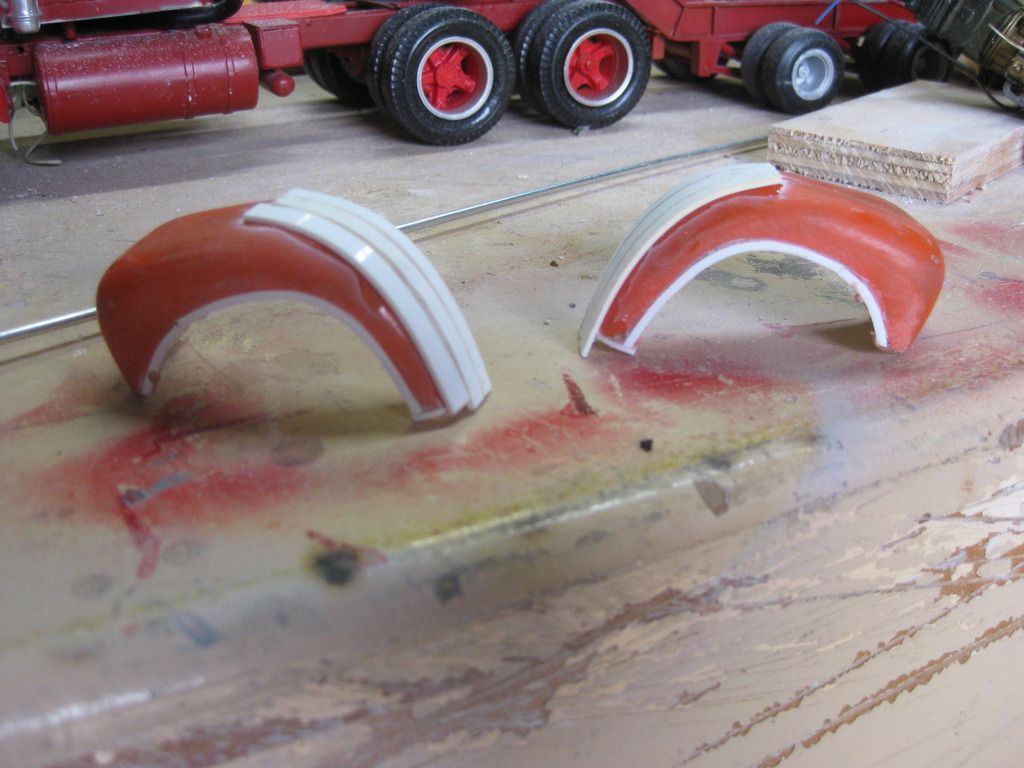

Pull the guards off because they were wrong, had to build the fiont of the cab
" />

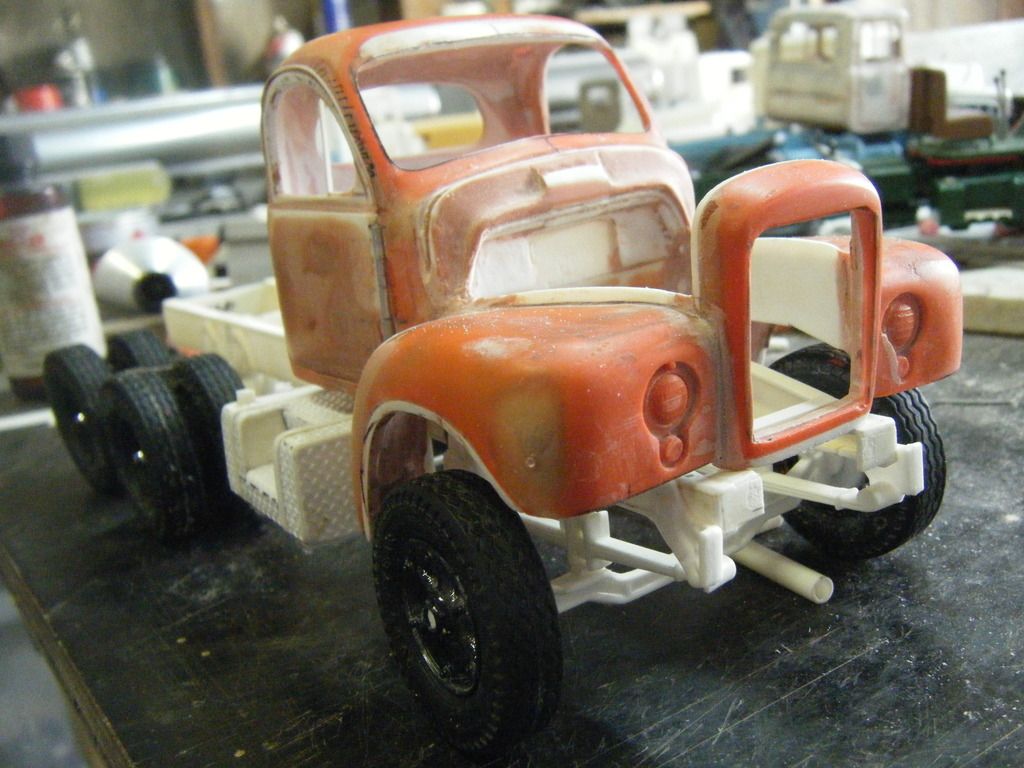

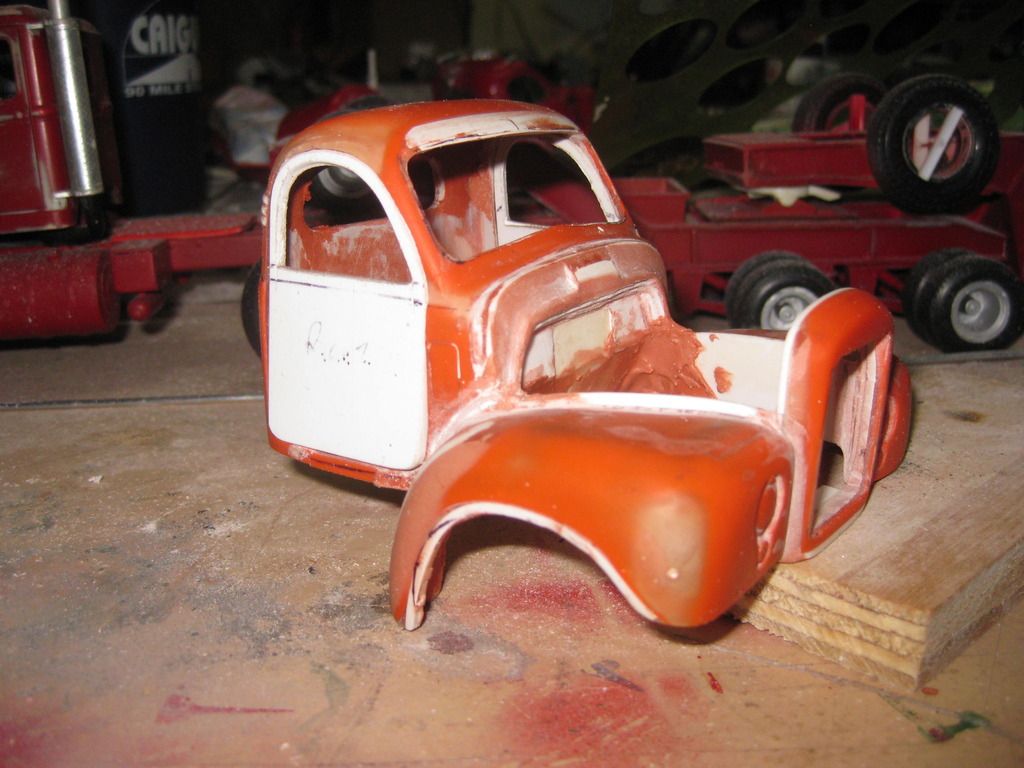

Guards back on, inner guards made, profile looked better, door profiles not right.
" />

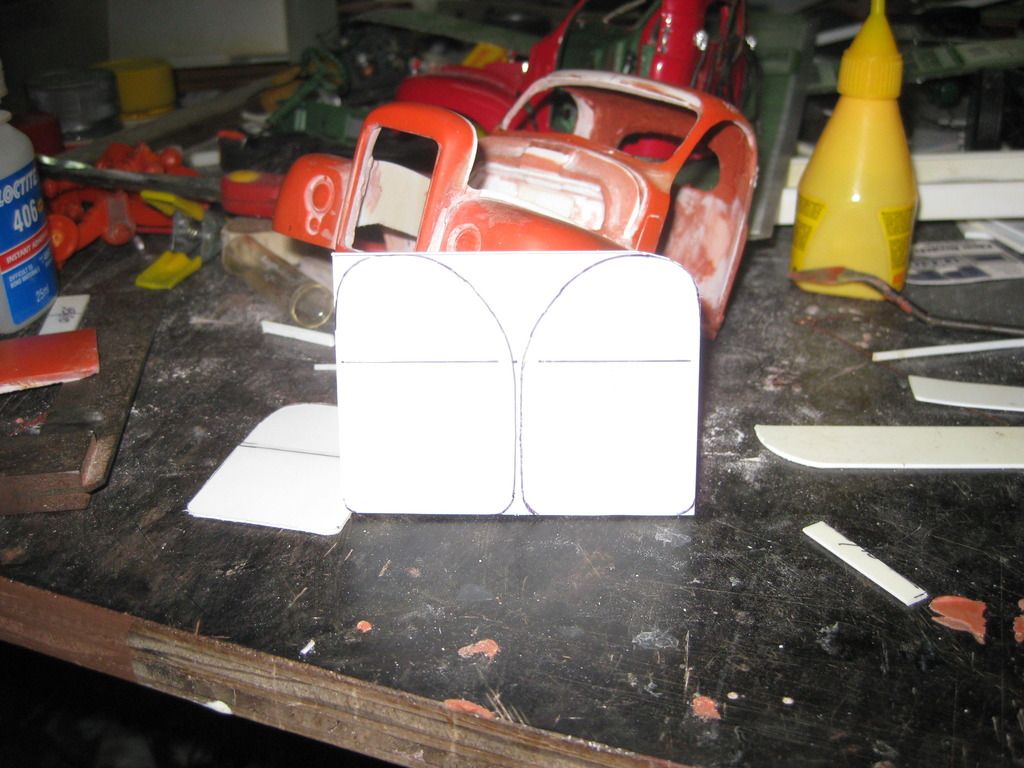

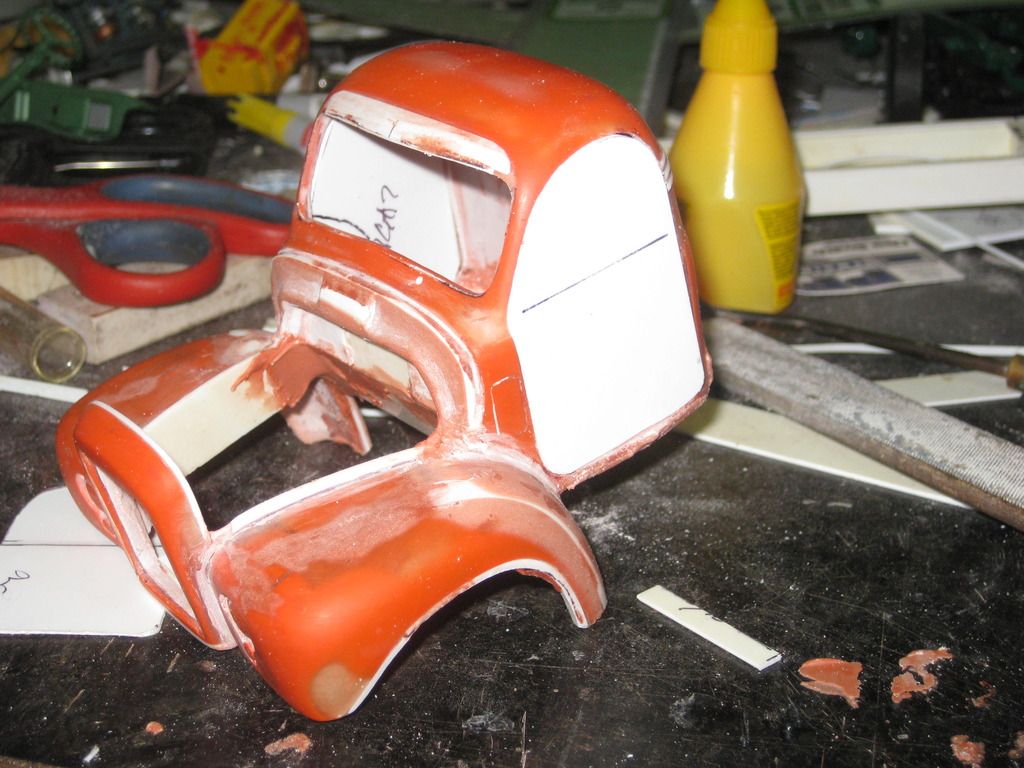

So...off came the doors, fab new ones out of 2mm sheet.
" />
" />
" />

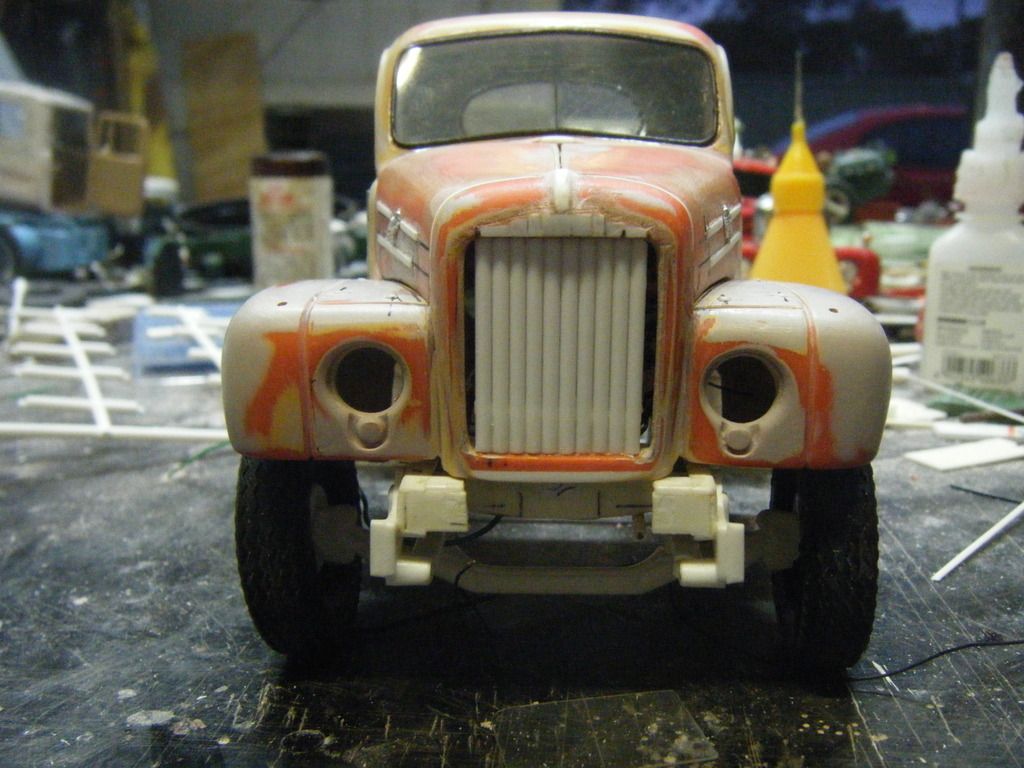

The grill was wrong...so out it came.
" />

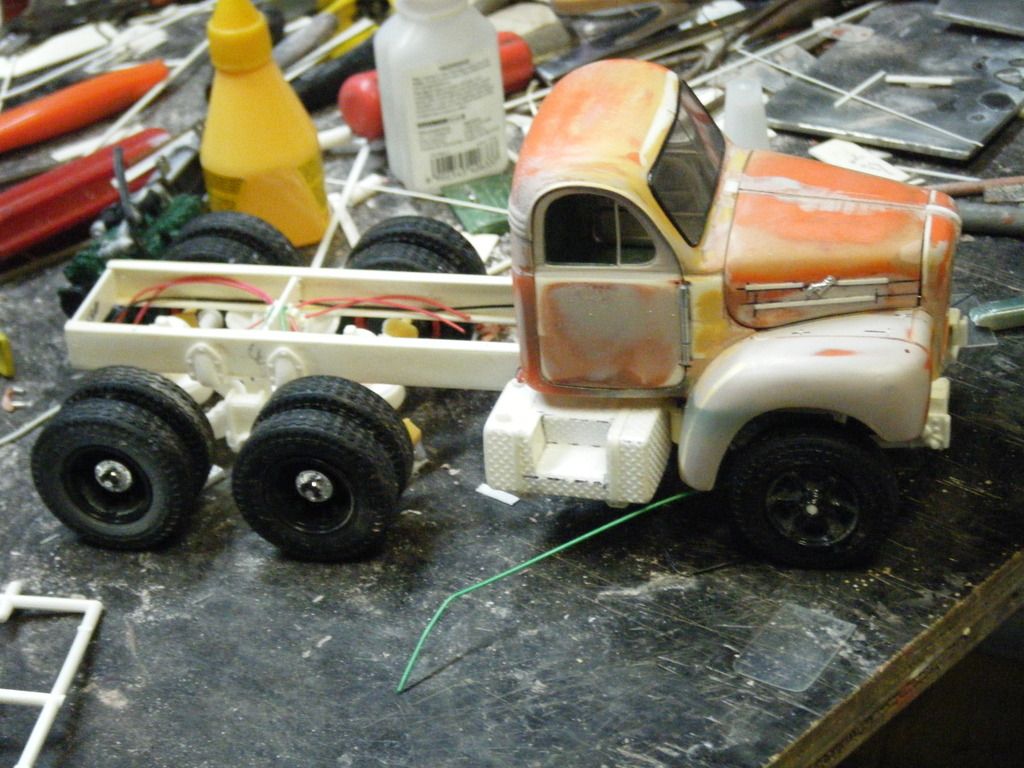

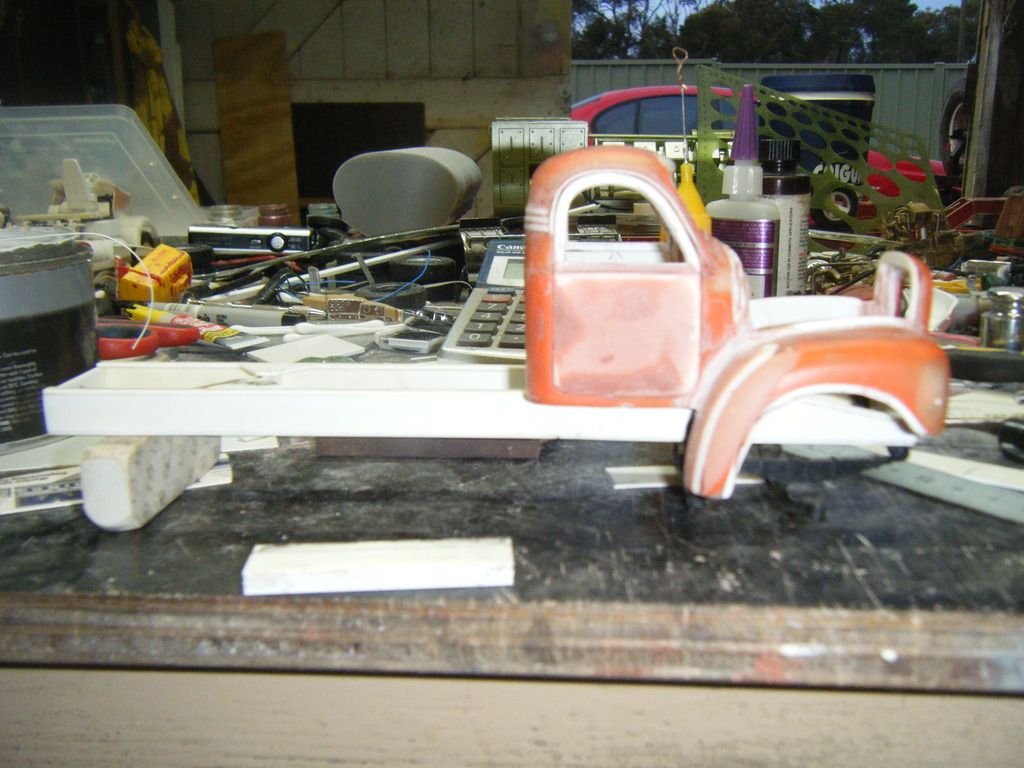

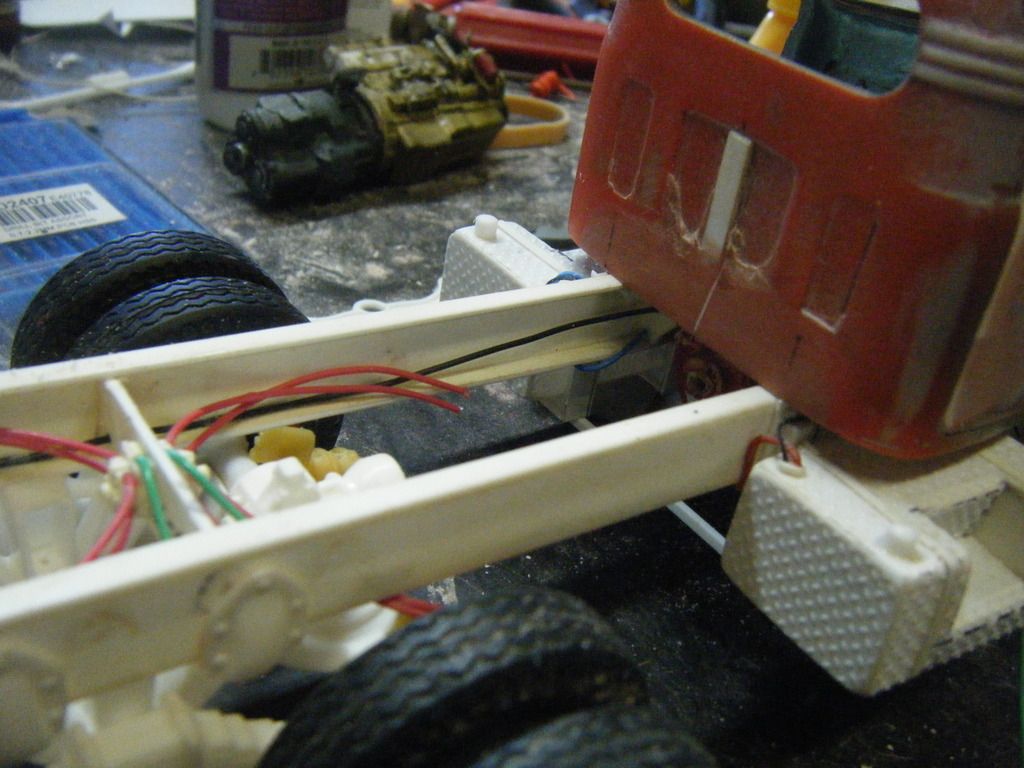

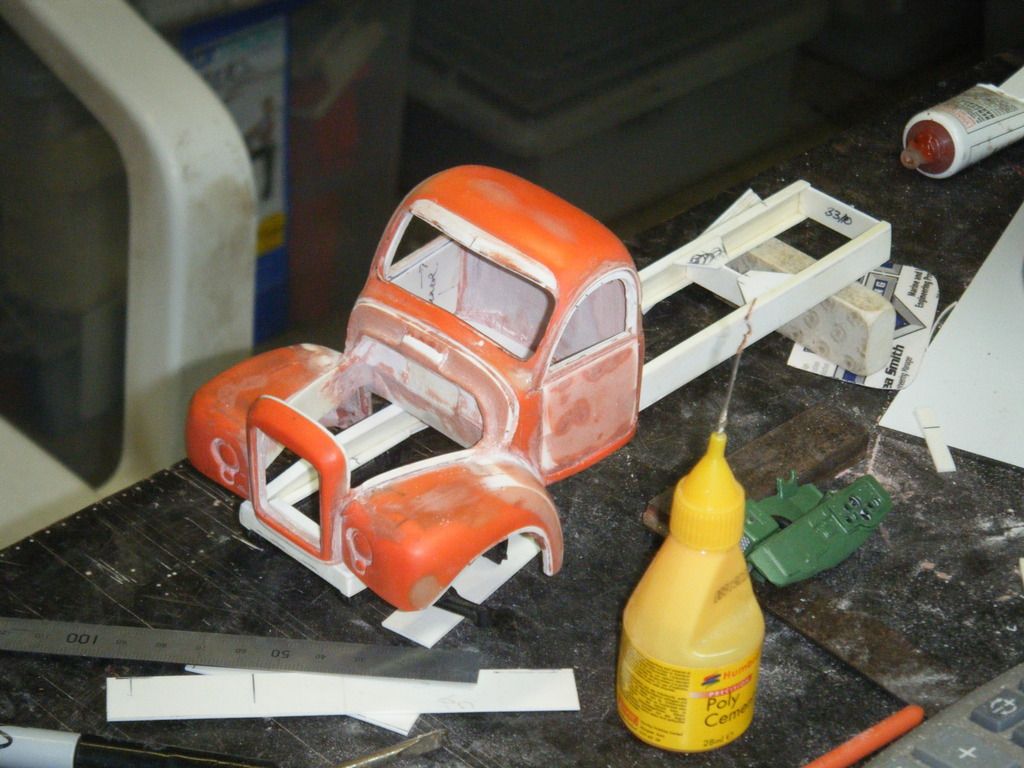

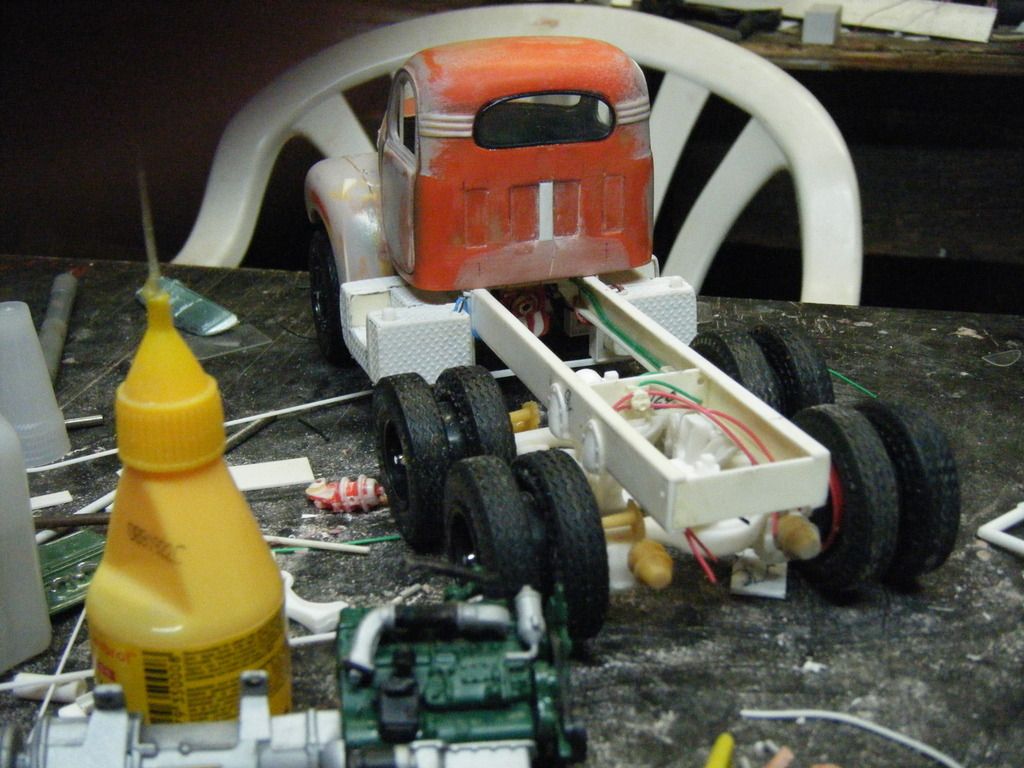

So knocked up a chassis
" />
" />

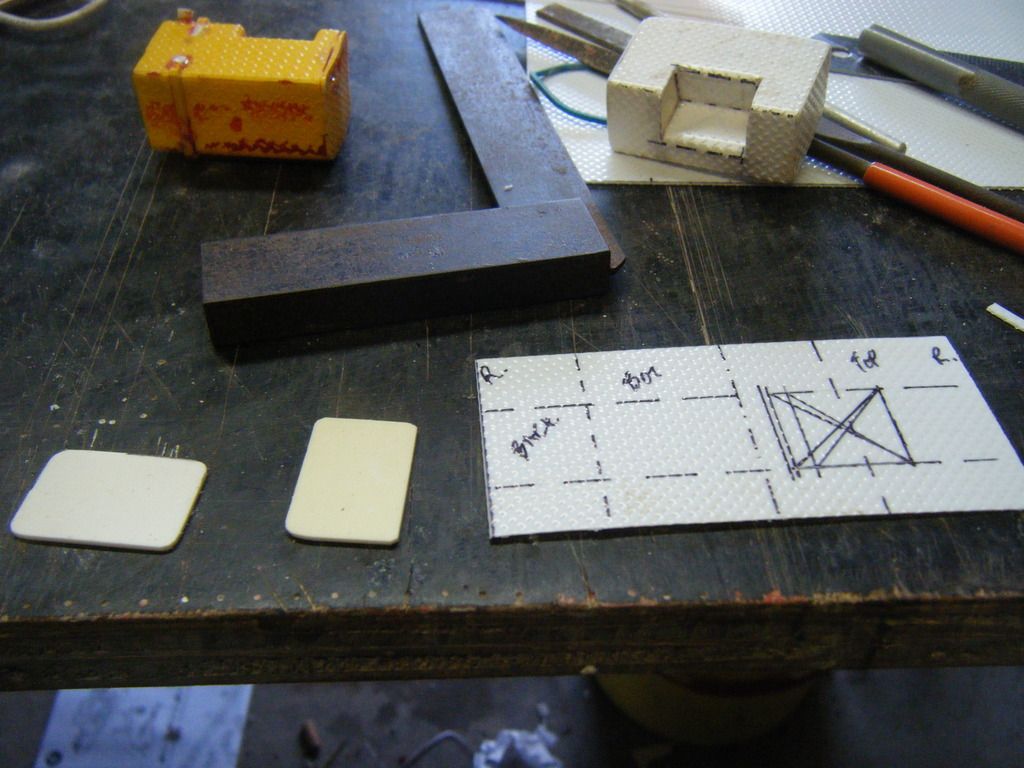

Tanks
" />
" />
" />
" />
Then the cowl was wrong, headlights looked shit
" />

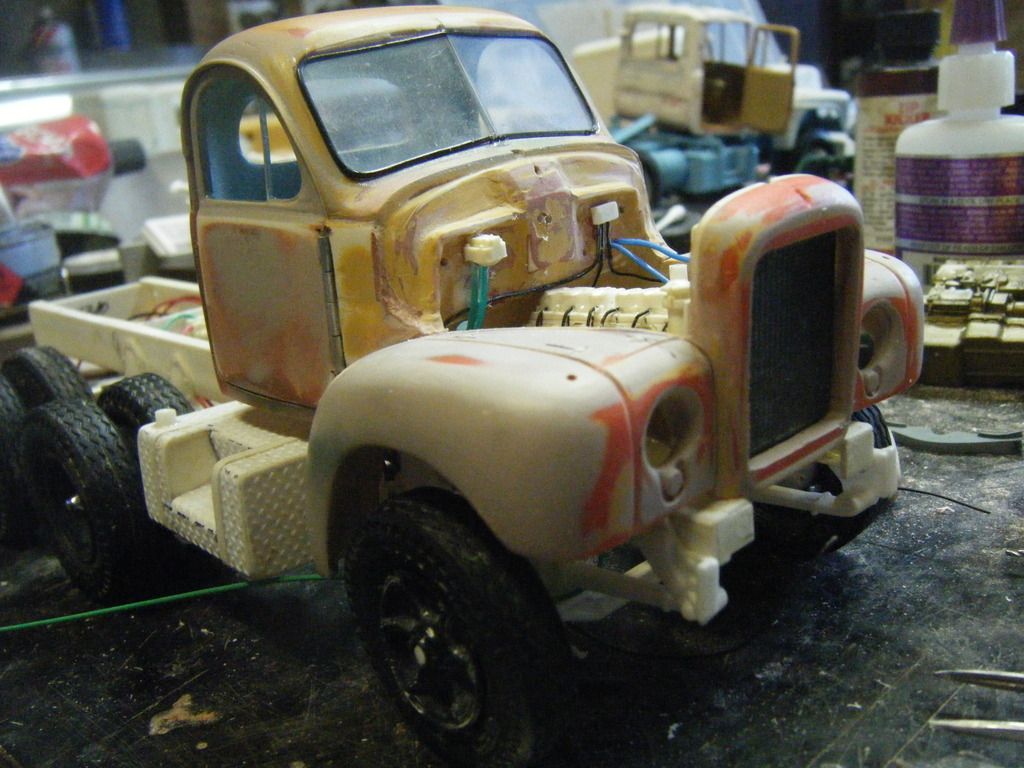

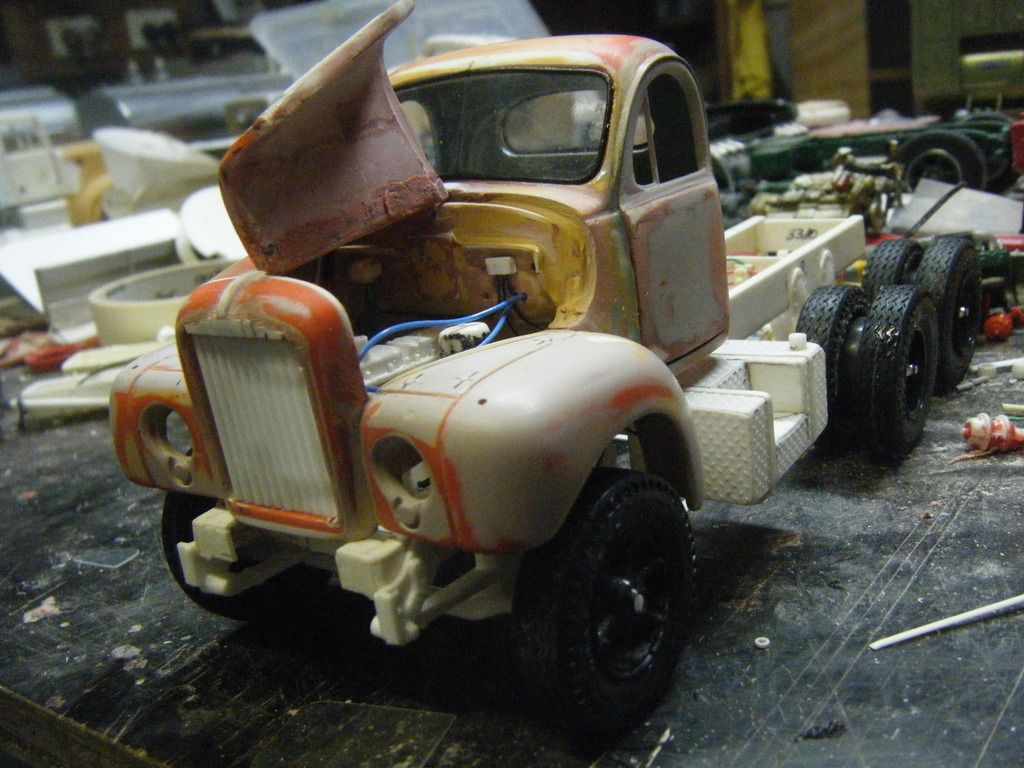

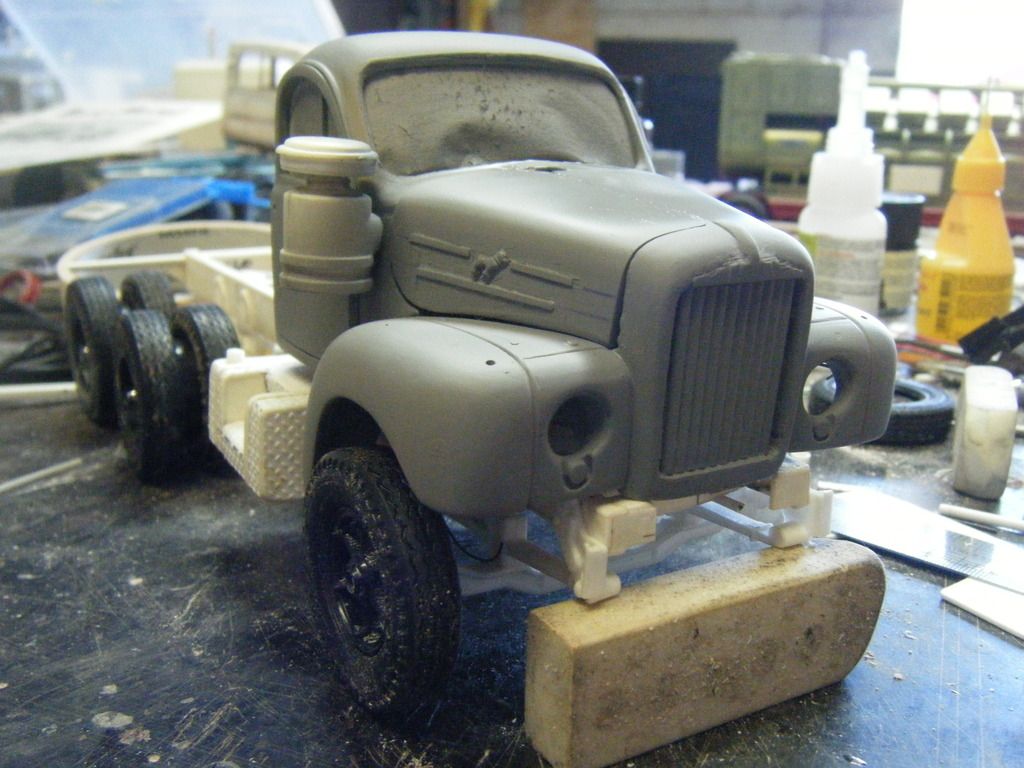

sorted the cowl, pieced the bonnet together, white is hips, bottom half of both sides of bonnet had gone. Did the screens
" />
" />

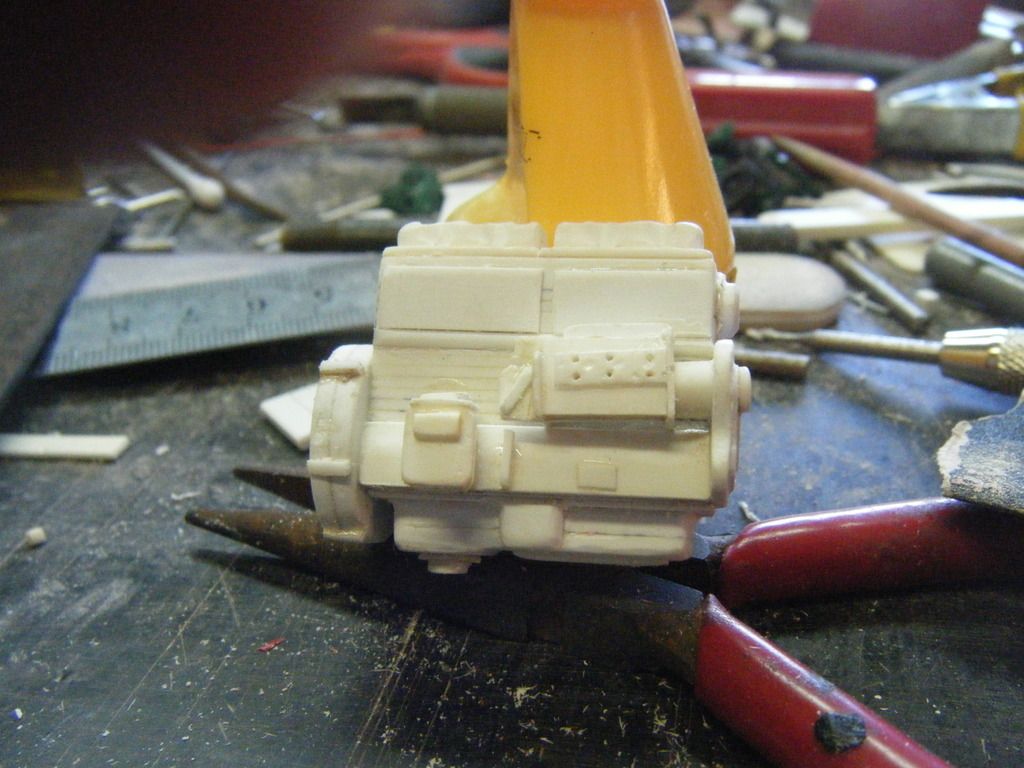

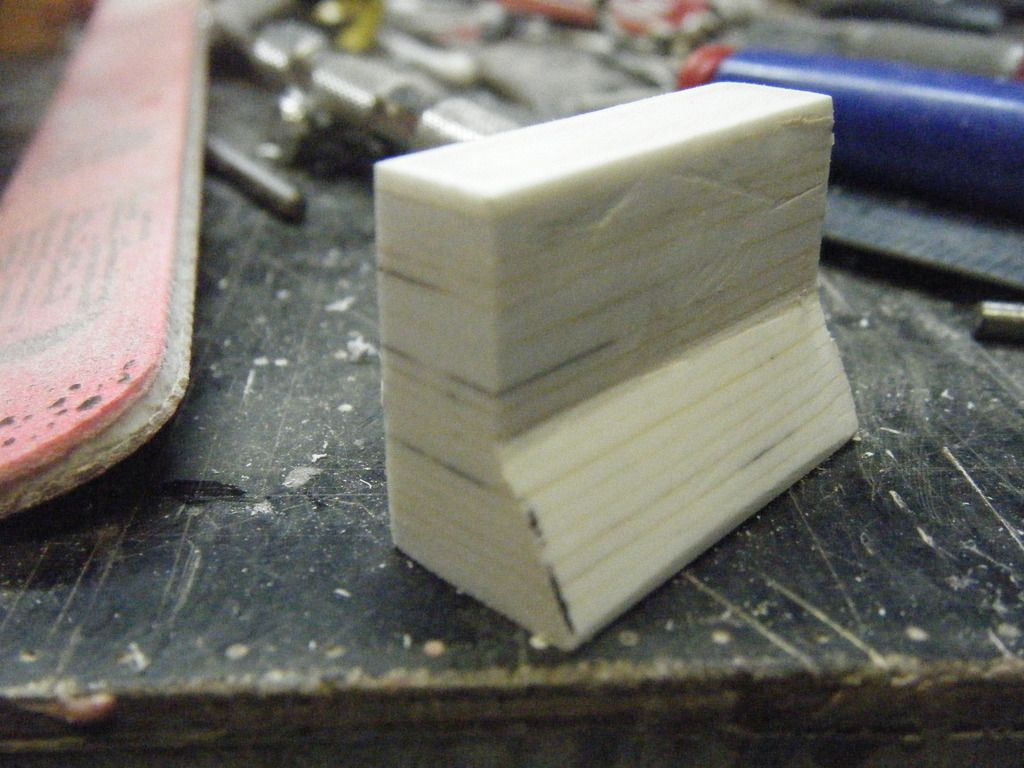

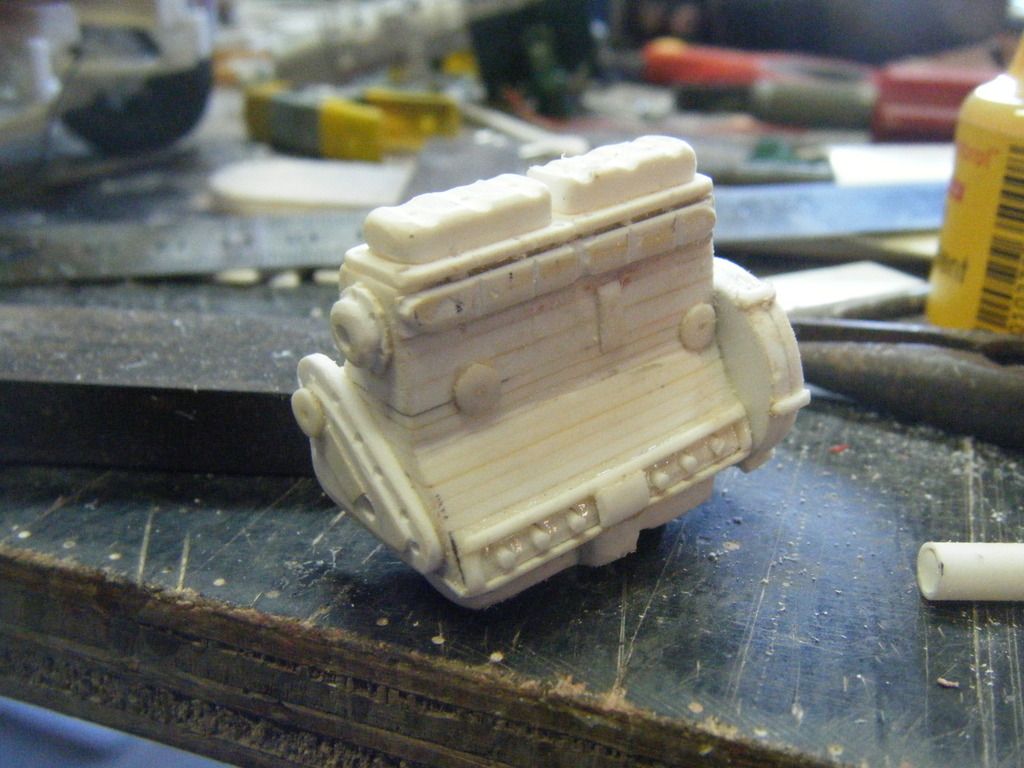

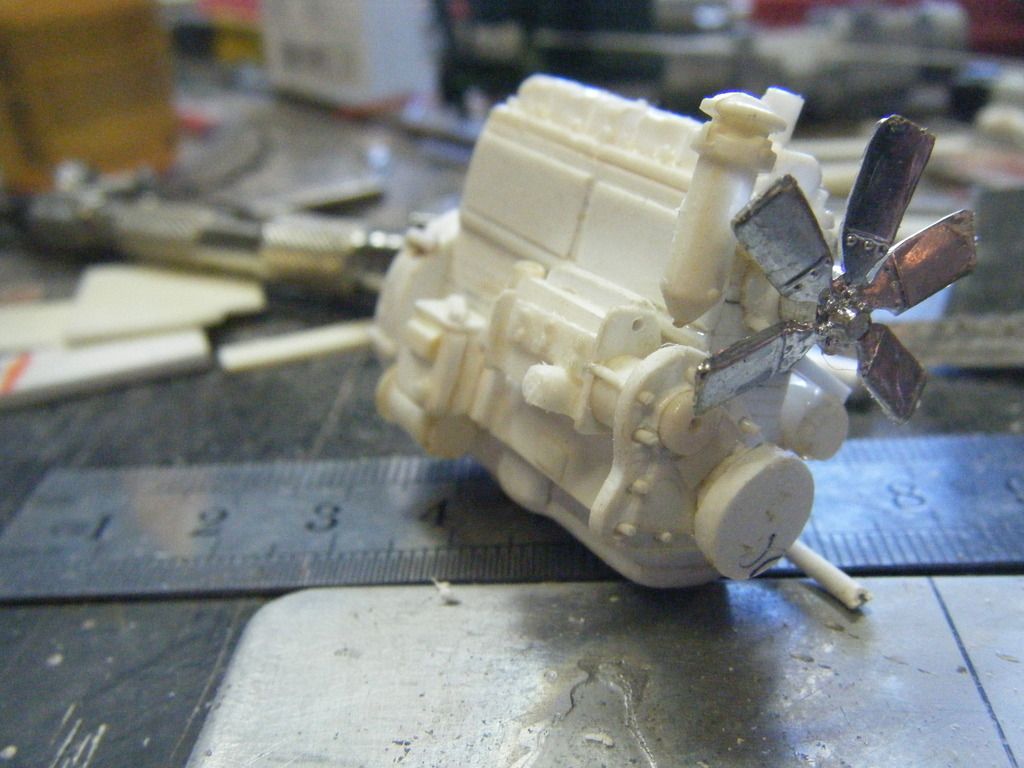

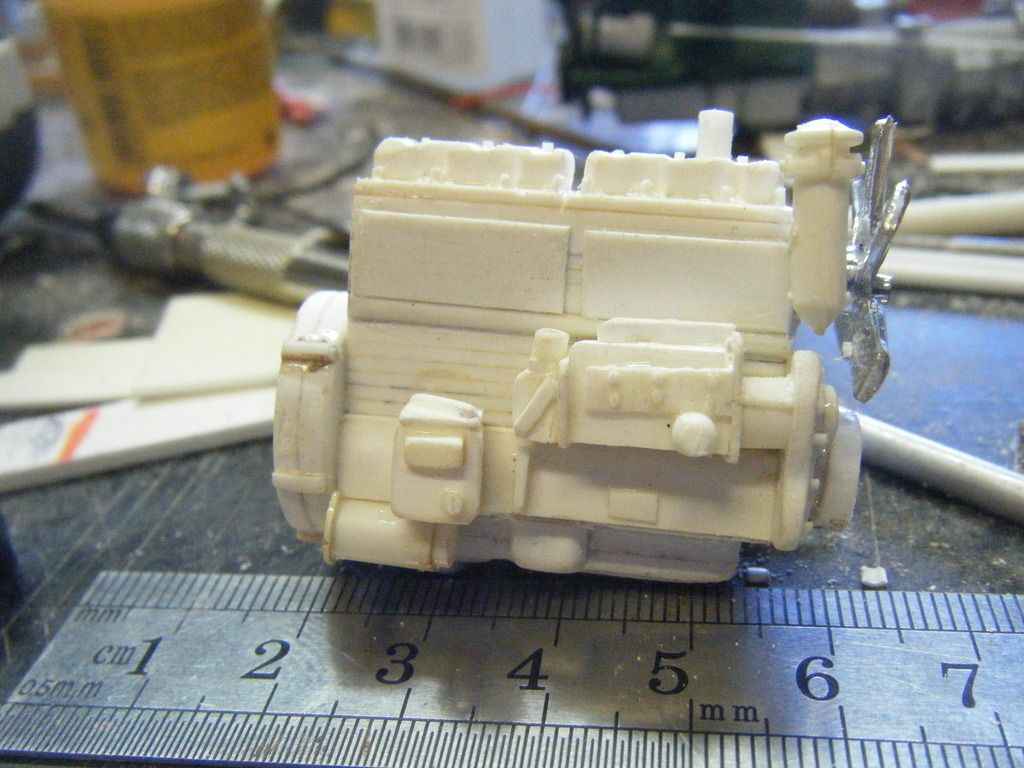

Then...had to make a motor. I use stirps of styrene, the thickness of the strips gives you some idea of dimension as you are carving it out first cut out of the block.
" />
It's just bits of plastic..
" />
" />
" />
" />
" />
" />
" />

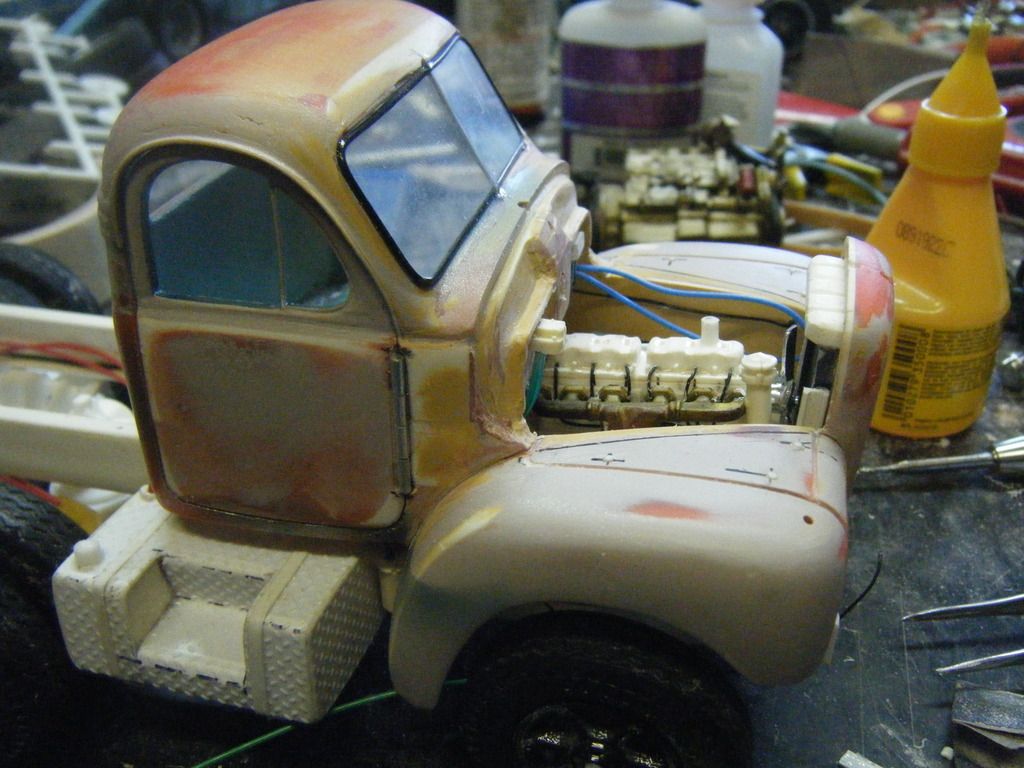

Made the new shutters, and the mack thingy on the top, mounted, hinged the bonnet hung the doors.
" />
" />
" />
" />
" />
(this is giving me the shits, so sorry AJ....cutting to the chase)

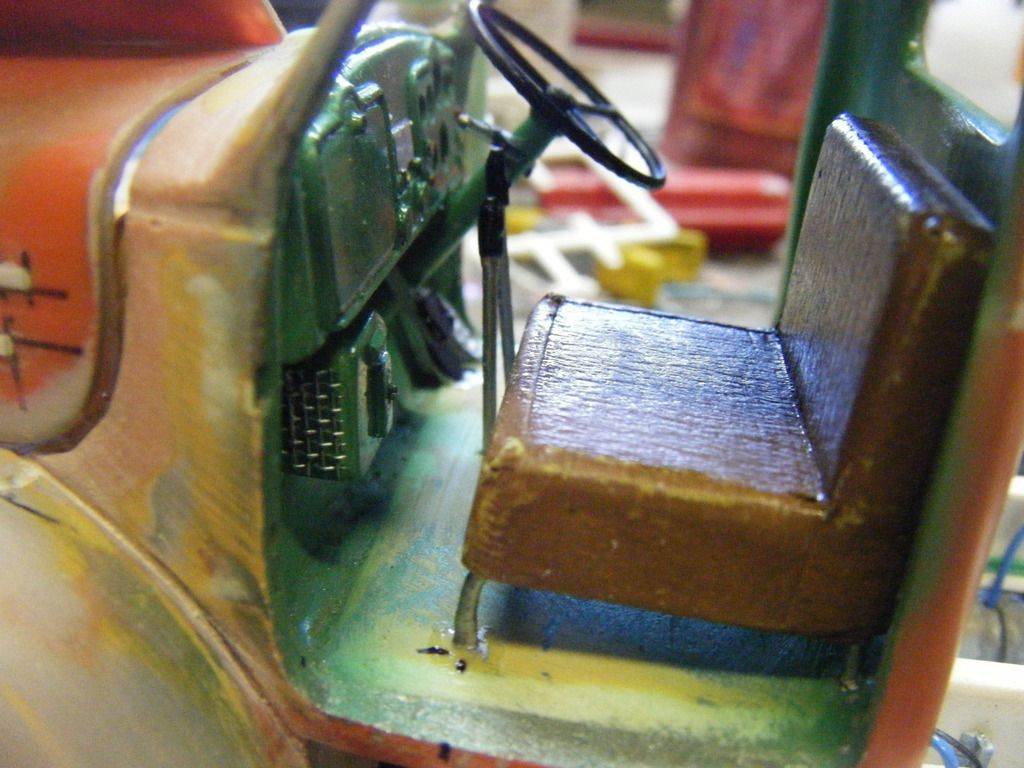

Finish interior.
" />
" />
" />

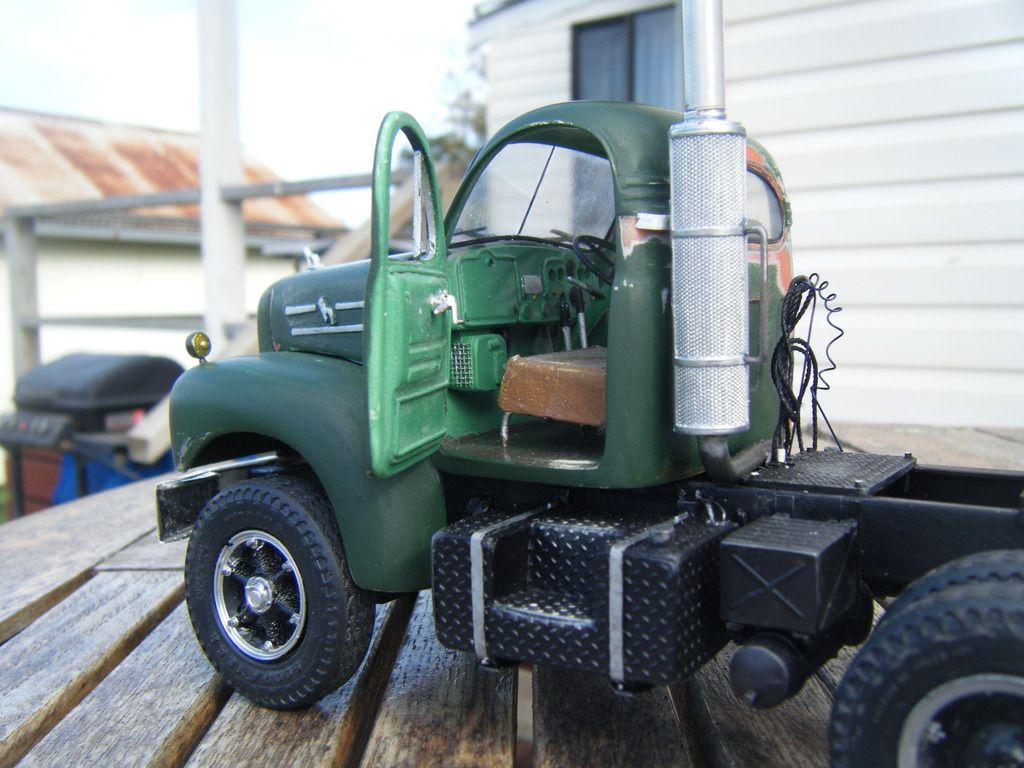

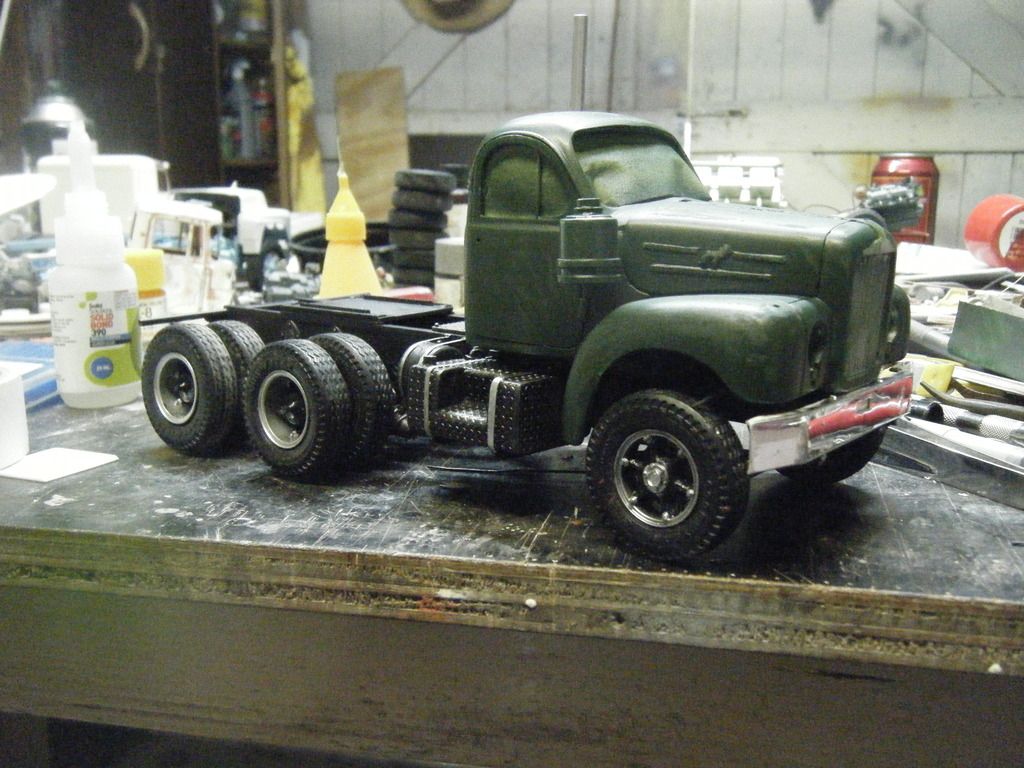

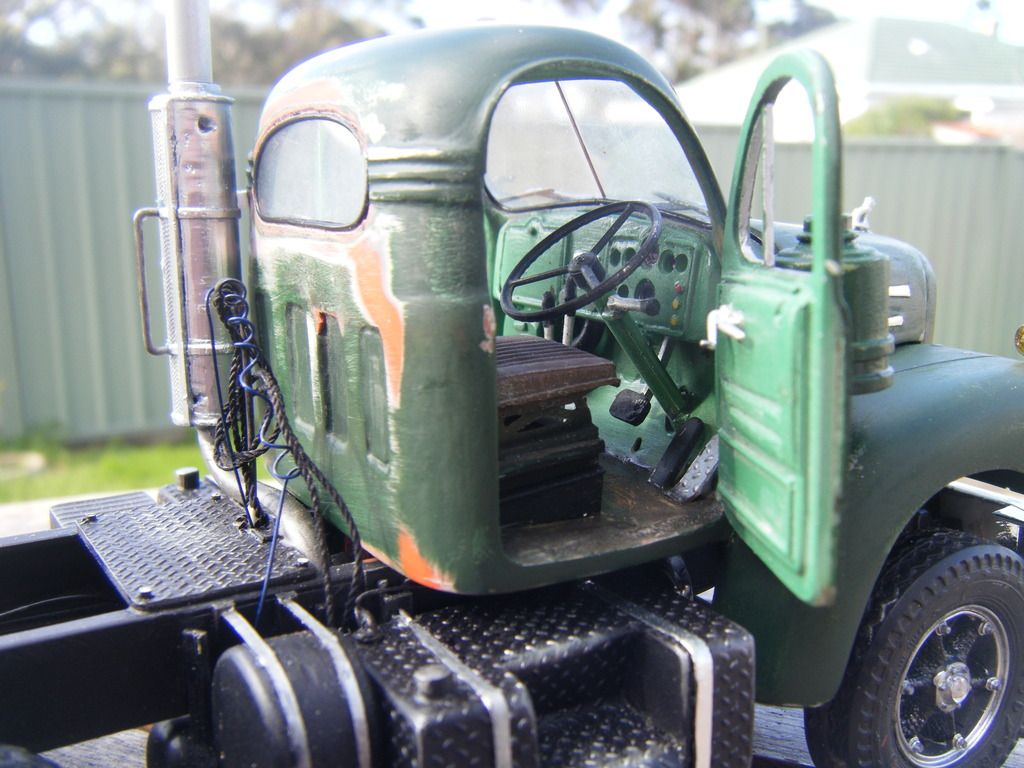

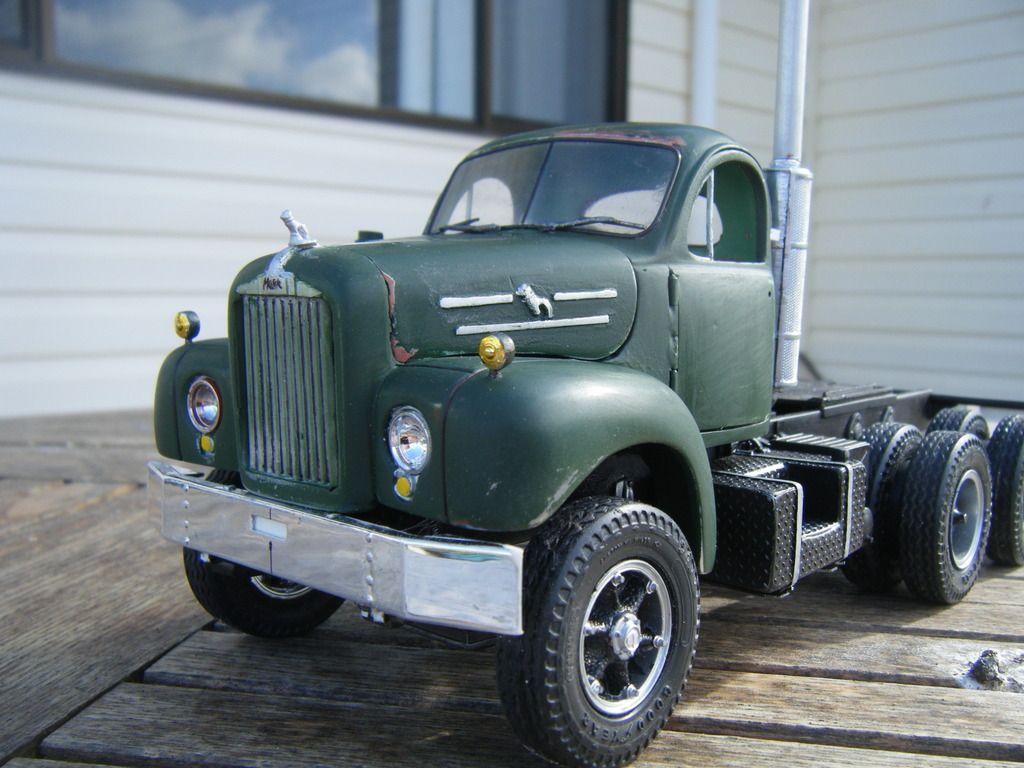

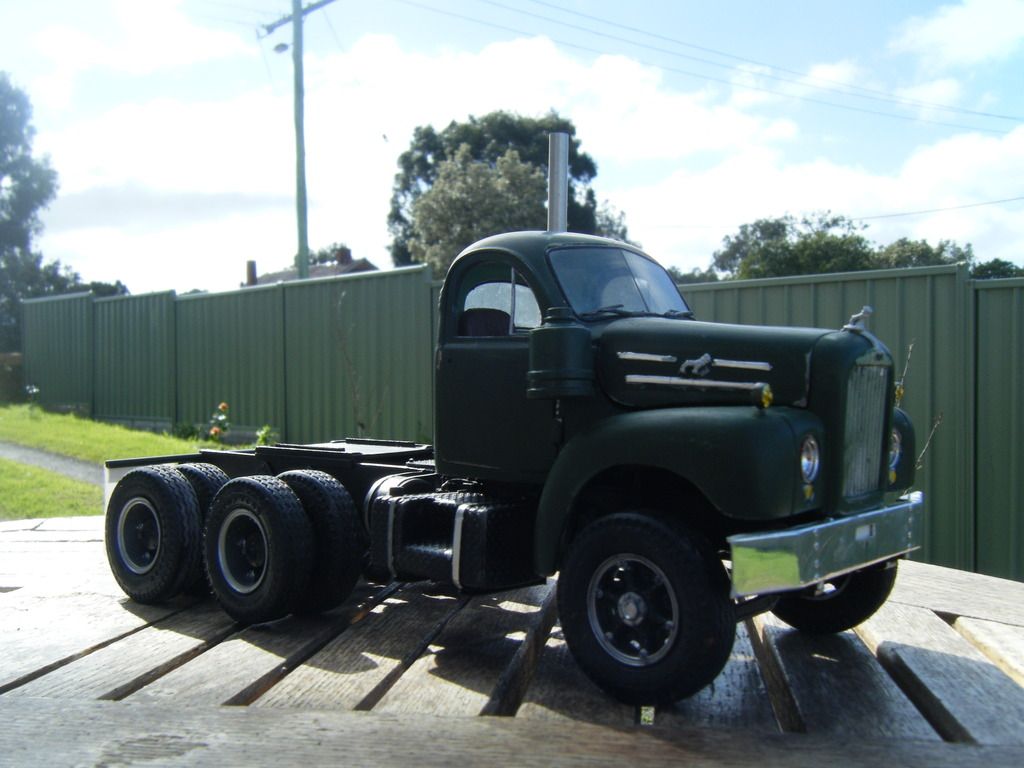

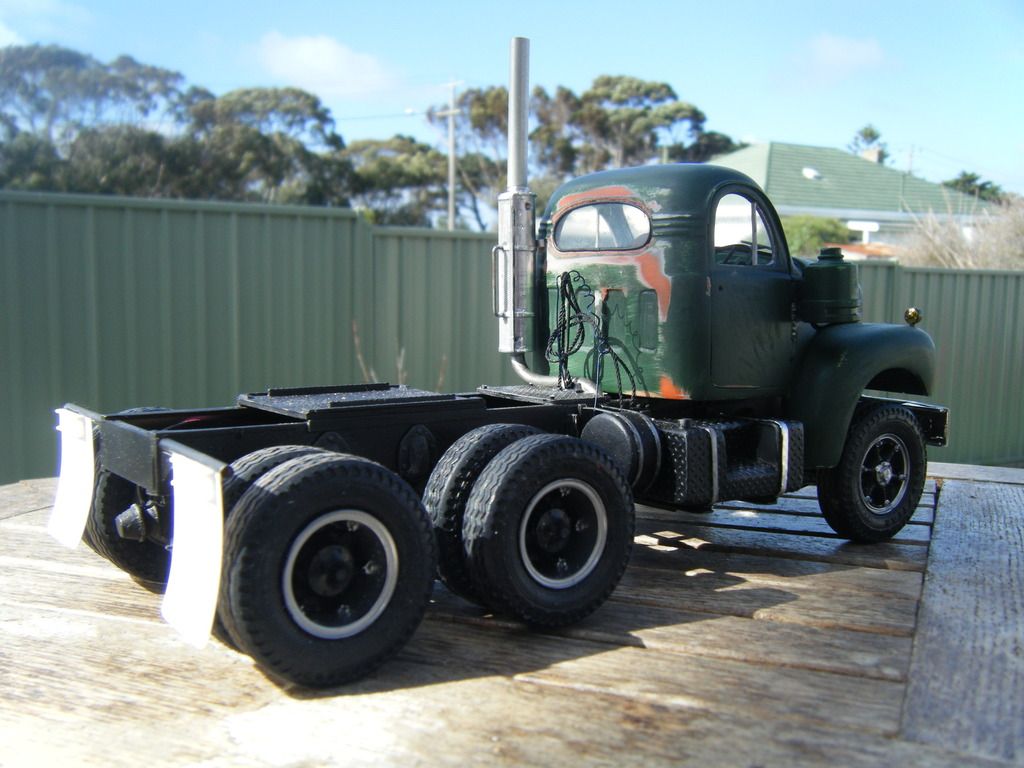

Paint and weather
" />
" />
" />
" />
" />

Geez, that's it AJ.......bet you're sorry you asked now.
Two things out of this one. And I equate this to...."if you buy a dog, you don't expect to have to teach it to bark when you get it home"....If you pay money for a 'cab' and don't alter  it from "stock" How does this shit come about.
From picking up the cab to  (without door handles and cab lights) I think all this bullshit took about 3 weeks. It was frustrating, but in the end I enjoyed it.
Just bits of plastic.......And a lot of bog.
avatar
clea
I should be working on Models
I should be working on Models

Male Number of posts : 167
Age : 68
Location : portland victoria
Registration date : 2013-04-27

Back to top Go down

Re: Just the build of the B61

Post by 70cudatj on Thu 02 Jun 2016, 6:04 pm

Holy smoke artichoke!! That's pretty sweet work mate, scratch building 101! The donk is a bloody gem bigthumbsup
avatar
70cudatj
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 2059
Age : 52
Location : Adelaide
Registration date : 2012-04-09

Back to top Go down

Re: Just the build of the B61

Post by dv8v8 on Thu 02 Jun 2016, 6:59 pm

that's an awesome amount of work there Clea and the result is amazing, I have 2 of these I haven't touched yet now I'm thinkin they may be toooooooo much work !
avatar
dv8v8
AMCC ADDICT
AMCC ADDICT

Male Number of posts : 5008
Location : Rockhampton QLD
Registration date : 2008-04-26

Back to top Go down

Re: Just the build of the B61

Post by Antwon on Thu 02 Jun 2016, 8:13 pm

So in other words, this thing is 95% scratch built................Bloody Ripper Clea.
avatar
Antwon
I Love this place
I Love this place

Male Number of posts : 890
Age : 52
Location : Adelaide SA
Registration date : 2013-02-10

Back to top Go down

Re: Just the build of the B61

Post by Yahshu on Sun 05 Jun 2016, 12:37 pm

What an amazing amount of work, you are one very patient man, well done.
avatar
Yahshu
I Love this place
I Love this place

Male Number of posts : 510
Age : 50
Location : Crows Nest, QLD
Registration date : 2011-12-20

Back to top Go down

Re: Just the build of the B61

Post by Leonidas on Sun 05 Jun 2016, 12:55 pm

Incredible work, awesome old Mack!

Leonidas
AMCC NEWBIE!
AMCC NEWBIE!

Male Number of posts : 35
Age : 37
Location : Chapel Hill, North Carolina
Registration date : 2016-02-02

Back to top Go down
